Vintage Biplane / Laser-cut design

Vintage Biplane.

Name: Vintage Biplane Laser Cut Files
Brand: 21CNCStudio

SVG laser-cut files for a vintage wooden biplane with two stacked wings, exposed struts and a wheeled undercarriage. Extract the ZIP and follow the PDF assembly guide.

Get the files Explore the model

Digital design · SVG · PDF guide
No physical model or materials are shipped.

Three-quarter visualization of the wooden Vintage Biplane showing two stacked wings, propeller and landing wheels — AI-assisted model visualization based on 21CNCStudio design renders.

01 /The design

The shape of early flight.

The gap between the two wings leaves the struts and open structure visible. A propeller at the nose and wheels beneath the fuselage complete the small aircraft’s profile.

With 3 mm material, the assembled biplane has a 385 mm wingspan and a 282 mm length. The largest part is 193 mm, so the finished wingspan is not the size of a single piece.

Two wing levels.

The upper and lower wings define the biplane silhouette.

Three material versions.

Files are described for 3 mm, 1/8 inch and 4 mm plywood or MDF.

Fit matters.

Most joints are designed to assemble without glue when thickness and kerf match correctly.

Views & details

A closer look.

Different views, details and a physical build. Select an image for a larger view.

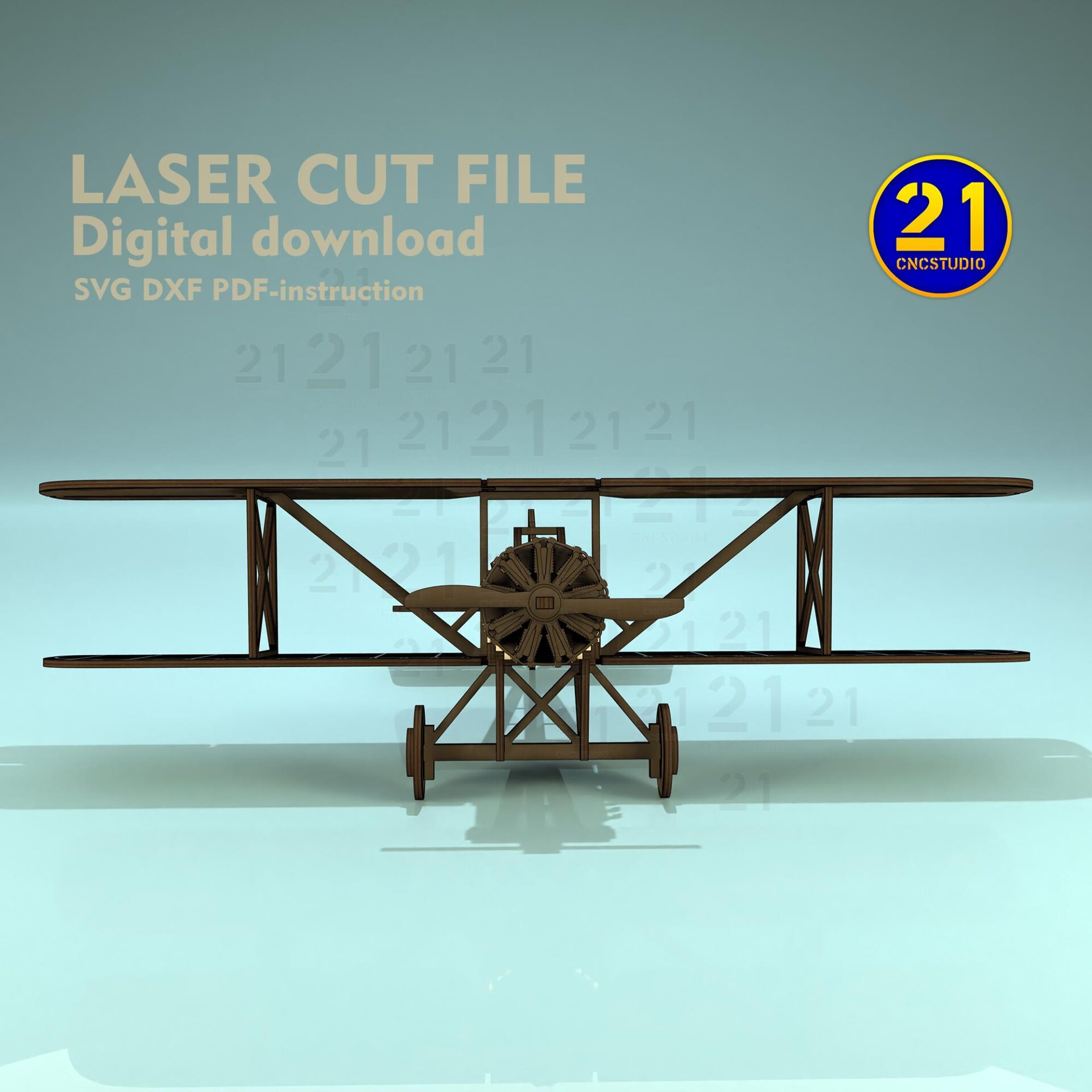

AI-assisted visualization. Front view of the biplane propeller, wings and landing gear.

AI-assisted visualization. Overhead view of the biplane wings and tail.

AI-assisted visualization. Close-up of the biplane cockpit between the two wings.

AI-assisted visualization. Close-up of the biplane engine, propeller and landing gear.

Customer-built plywood biplane photographed from above on a tiled floor. — Customer build from an Etsy review. Materials, colours and any added lighting are the maker’s own example.

02 /At your workbench

Choose your material.Make it fit.

01 /

Measure first.

Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.

02 /

Check the layout.

Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.

03 /

Follow the guide.

Use the PDF assembly guide to identify the parts and work through the construction sequence.

Plan this build.

Measure the material and select the matching version. Test a joint first; a fit that is too tight can damage small struts during assembly.

At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.

Before you start.

Design files: SVG, supplied in ZIP
Assembly guide: PDF included
Material versions: 3 mm / 1/8 inch / 4 mm plywood or MDF
Finished length at 3 mm: 282 mm
Wingspan at 3 mm: 385 mm
Finished height at 3 mm: 122 mm
Largest part: 193 mm

Is this a flying aircraft or an RC kit?

This is a wooden display model. Flight hardware, electronics and flying performance are not part of the design described here.

What do I receive?

SVG design files in a ZIP archive and PDF assembly instructions. The current package description confirms SVG; this page does not promise a DXF version. No physical model or materials are shipped.

Can I change the scale?

Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.

Can I use the design commercially?

The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.

03 /From the studio to your workbench

Bring the biplane to your bench.

View the Vintage Biplane file package and its current terms on Etsy.

View files on EtsyDigital design files.
No physical model, material or hardware is shipped.
