A Shoro tower. A balcony above.

SVG and DXF files for a Shoro-style Samurai Village watchtower, with a PDF assembly guide. Build the curved roof and balcony above a tall stone-pattern base.

Get the filesExplore the model

Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.

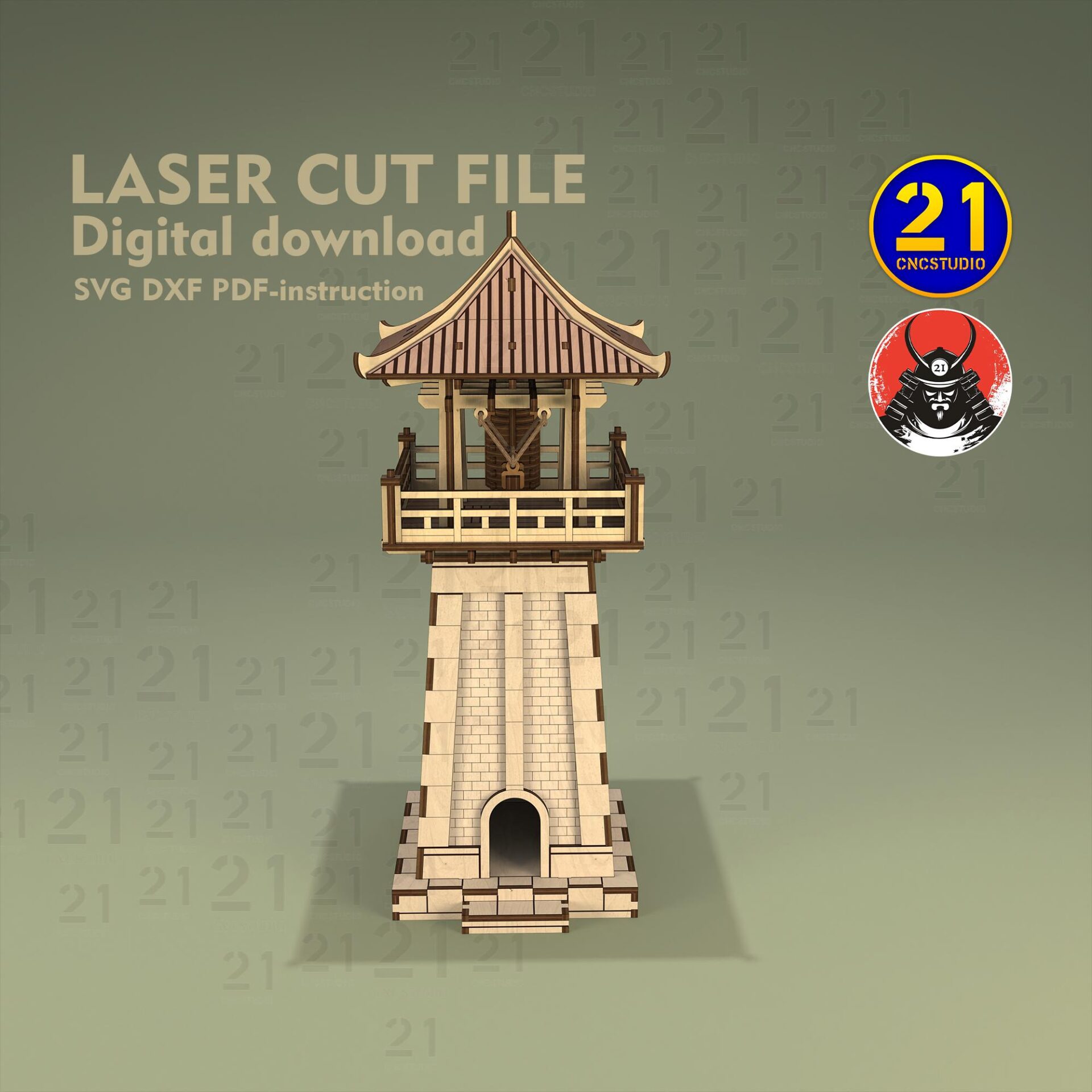

Front three-quarter visualization of the Shoro watchtower with a curved roof, balcony and tall stone-pattern base
AI-assisted model visualization based on 21CNCStudio design renders.

01 /The design

A balcony above the stone-pattern base.

The roof curves outward over a railed balcony, with a bell visible in the original design render. The arched opening and steps mark the front of the tall base; the gallery includes close views of both sections.

The finished Shoro tower measures 171 × 171 × 310 mm. Files are supplied for 3 mm and 1/8-inch plywood or MDF. A customer photograph shows one completed version with a red roof and railings.

Samurai Village design

Use the tower as the tall structure in your scene.

Upper and lower detail

Inspect the balcony, roof, arched opening and steps in the original renders.

Assembly PDF

Follow the supplied guide with the matching material version.

Views & details

Different views, details and a physical build. Select an image for a larger view.

Customer photograph of a completed Shoro watchtower with a red roof, railings and stone-pattern base.
Customer build photo from an Etsy review. Customer photograph of a completed Shoro watchtower with a red roof, railings and stone-pattern base.

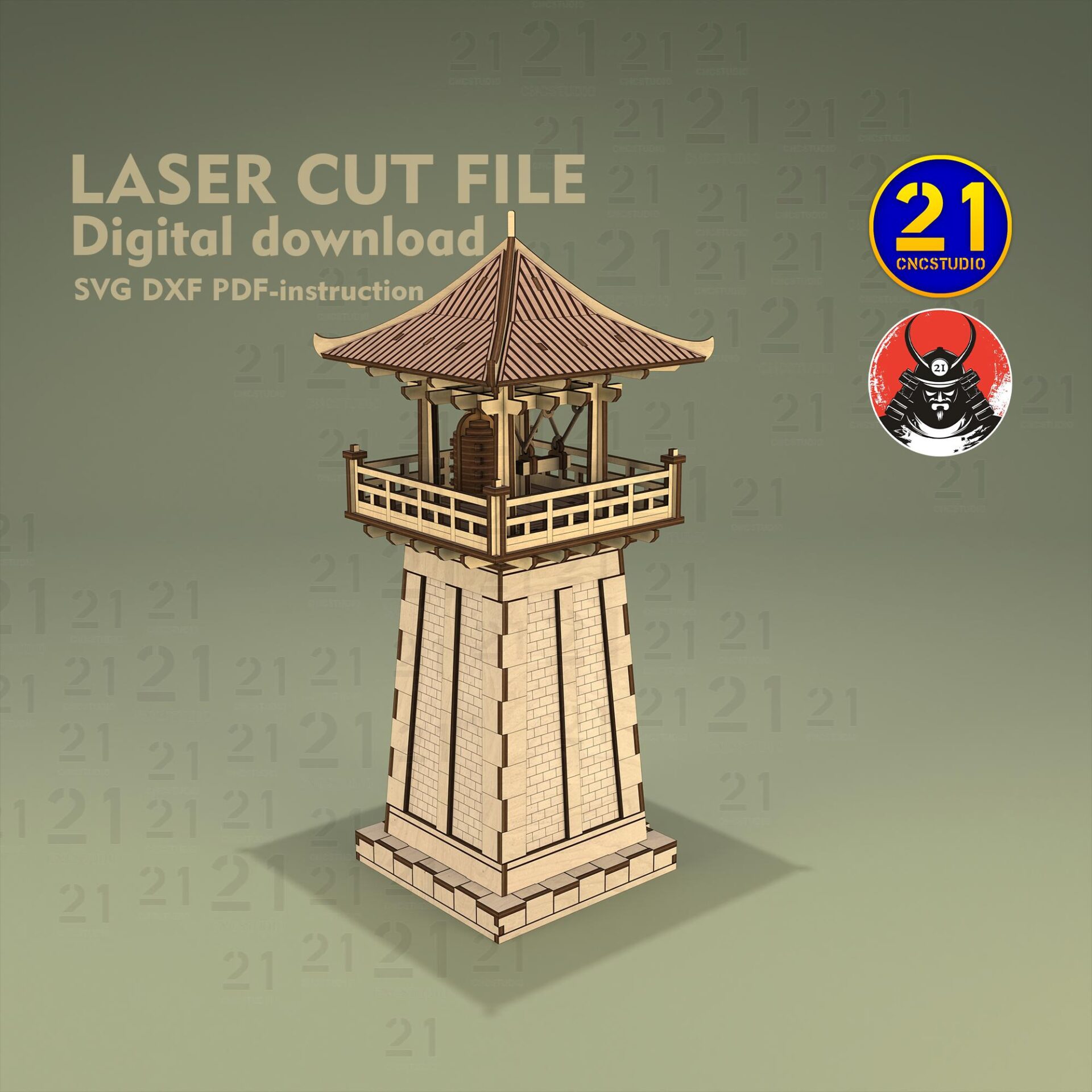

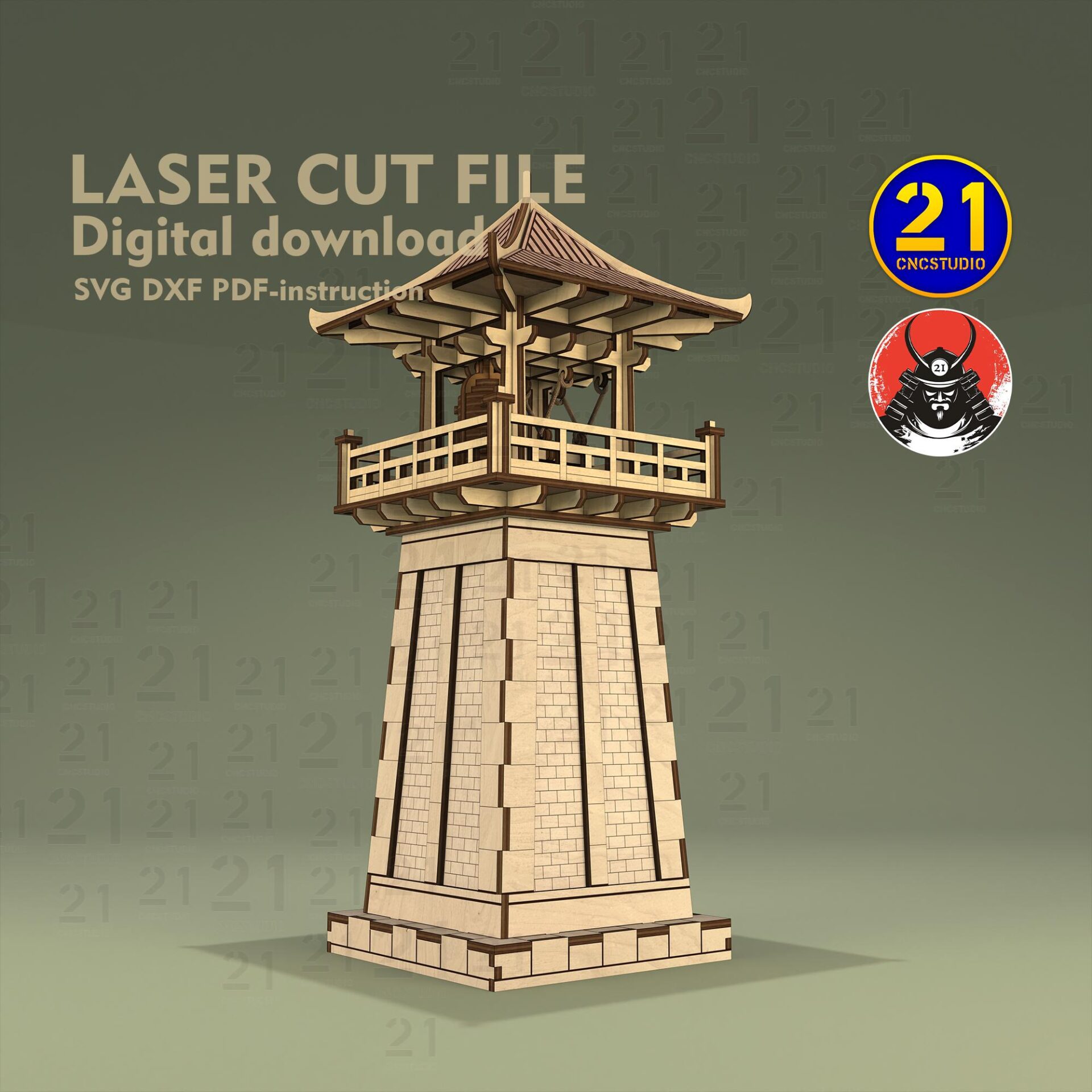

Rear three-quarter render of the Shoro watchtower showing the balcony, roof and tall stone-pattern base.
Original 21CNCStudio design render. Rear three-quarter render of the Shoro watchtower showing the balcony, roof and tall stone-pattern base.

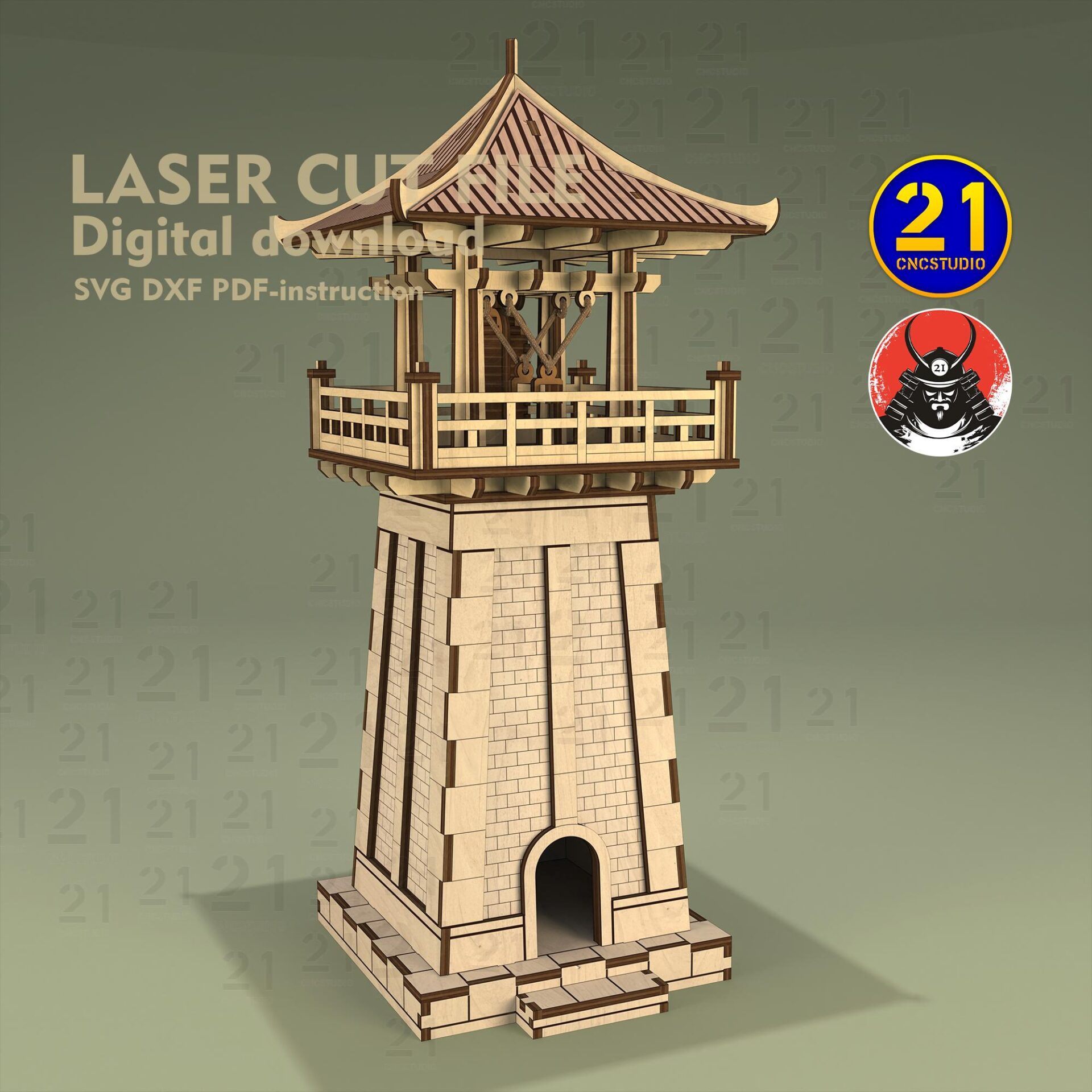

Close render of the Shoro watchtower balcony and bell beneath the curved roof.
Original 21CNCStudio design render. Close render of the Shoro watchtower balcony and bell beneath the curved roof.

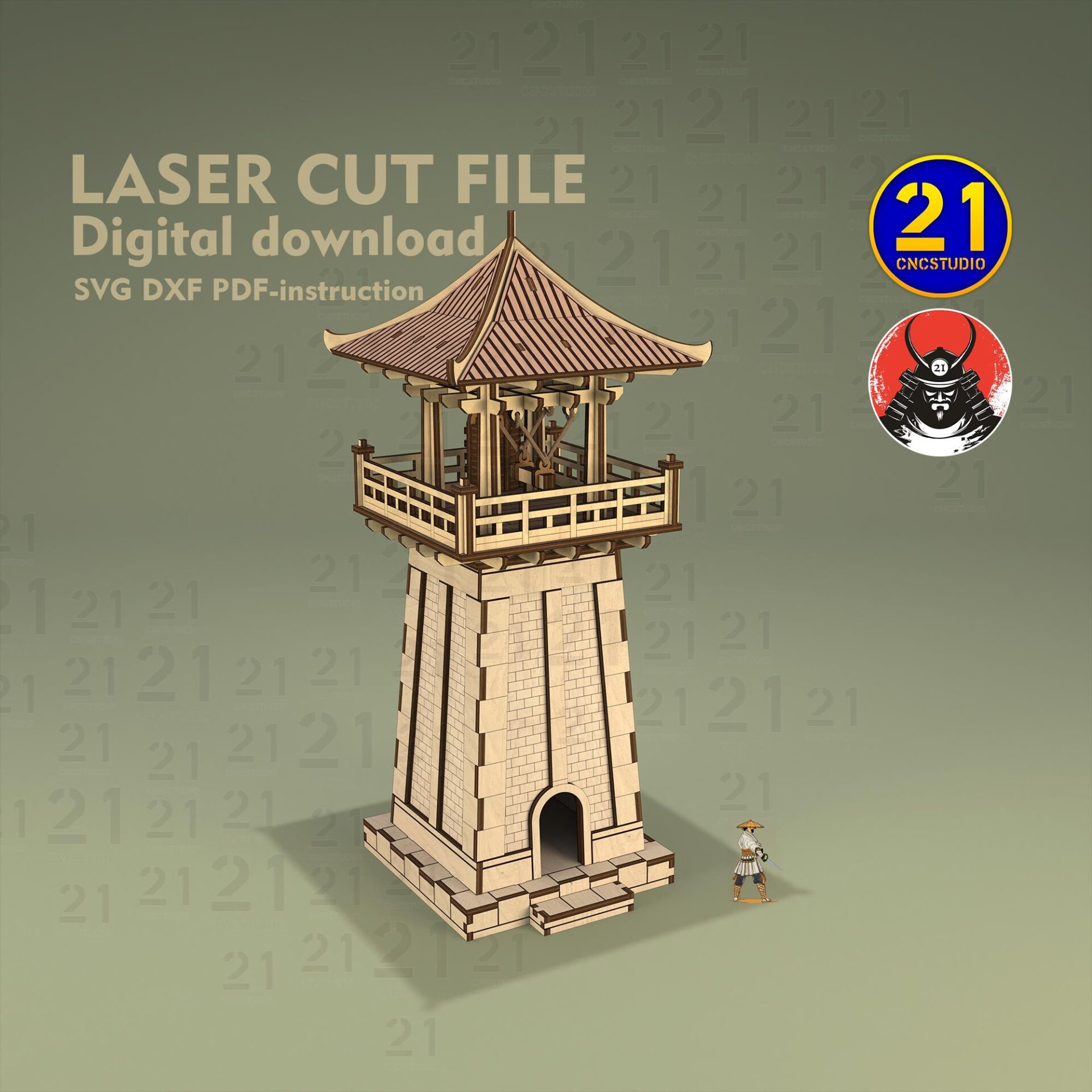

Close render of the Shoro watchtower base showing the arched opening and steps.
Original 21CNCStudio design render. Close render of the Shoro watchtower base showing the arched opening and steps.

02 /At your workbench

Choose your material.Make it fit.

01 /

Measure first.

Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.

02 /

Check the layout.

Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.

03 /

Follow the guide.

Use the PDF assembly guide to identify the parts and work through the construction sequence.

Plan this build.

Choose the file version for your measured plywood or MDF. Test the slots and fine balcony connections, and follow the guide through the base and roof sections. The 310 mm height is the finished assembly.

At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.

Before you start.

Series
Samurai Village
Design files
SVG + DXF
Assembly guide
PDF included
Material versions
3 mm / 1/8 inch plywood or MDF
Finished size
171 × 171 × 310 mm (L × W × H)
Is this the compact single-sheet watchtower?

This is the larger Shoro watchtower, measuring 171 × 171 × 310 mm. The separate Compact Asian Watchtower is a smaller design with a ladder and a single-sheet layout.

What do I receive?

SVG and DXF designs for the Shoro watchtower, with PDF assembly instructions and versions for 3 mm and 1/8-inch plywood or MDF. No physical terrain or material is supplied.

Can I change the scale?

Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.

Can I use the design commercially?

The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
