Arizona Layered Map / Laser-cut design

Arizona. Seven layers.

Desert colours, cacti and a bird in flight within the Arizona outline. Seven layers turn the scene into artwork you can cut and finish yourself.

Get the filesExplore the model

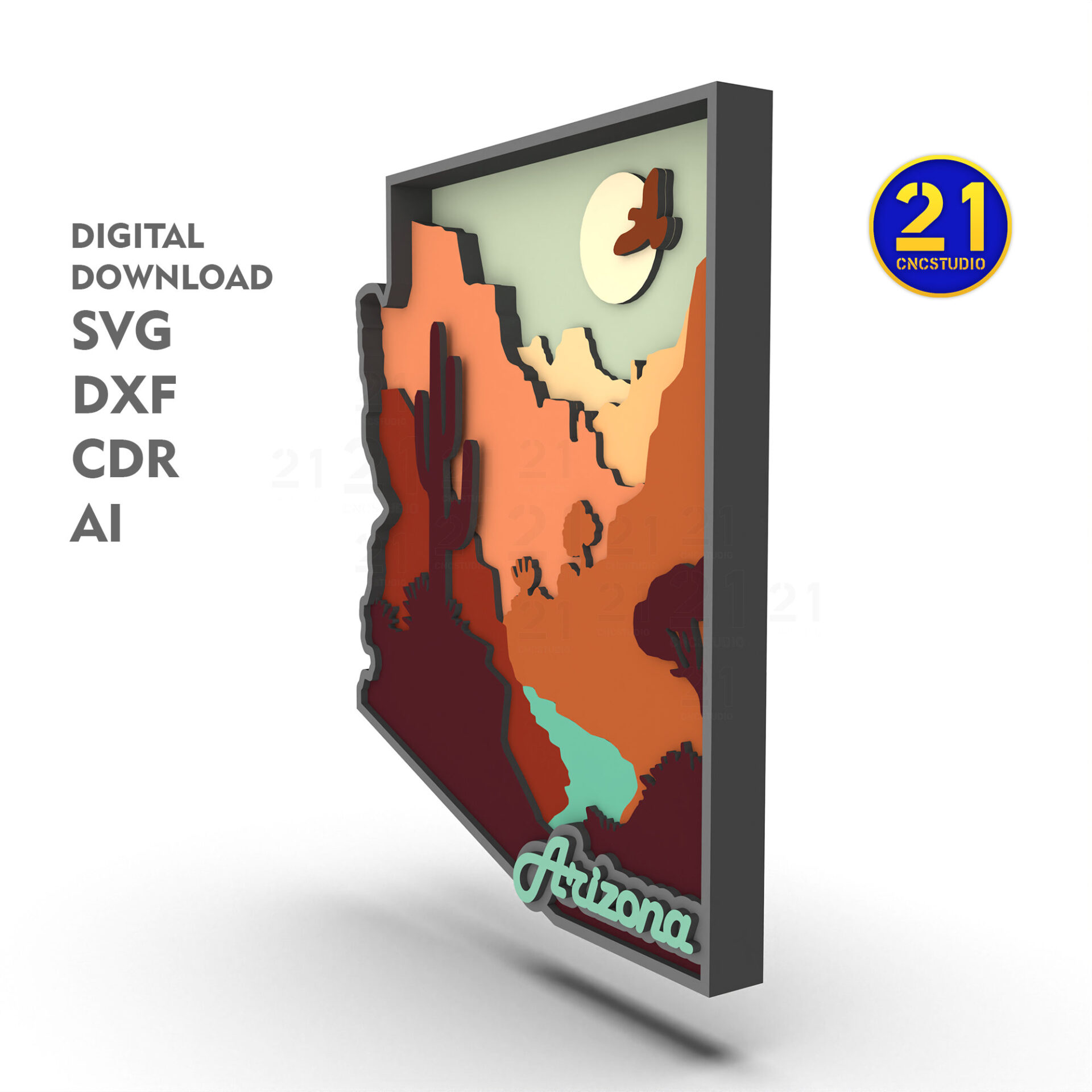

Digital design · SVG + DXF + AI + CDR + EPS
No physical model or materials are shipped.

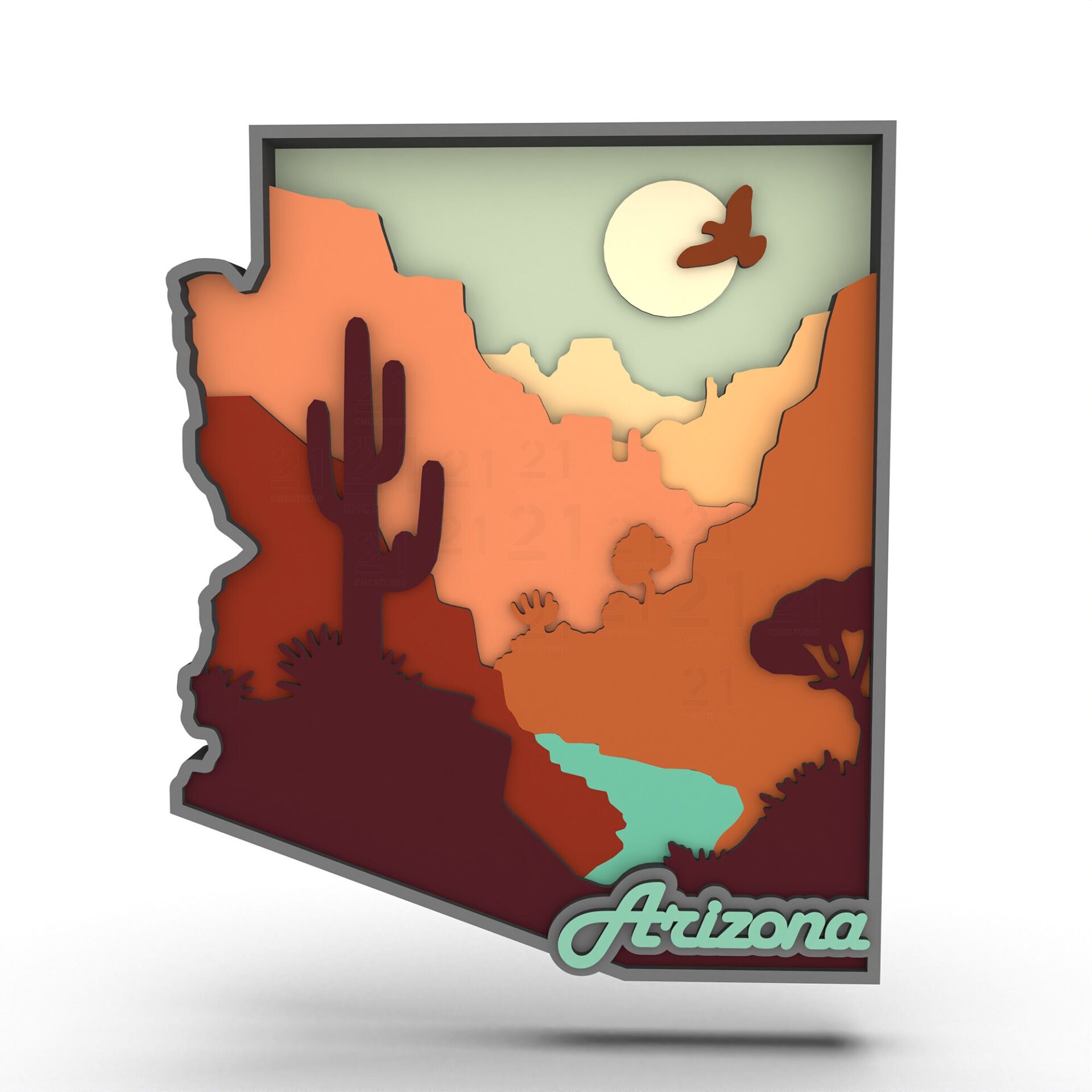

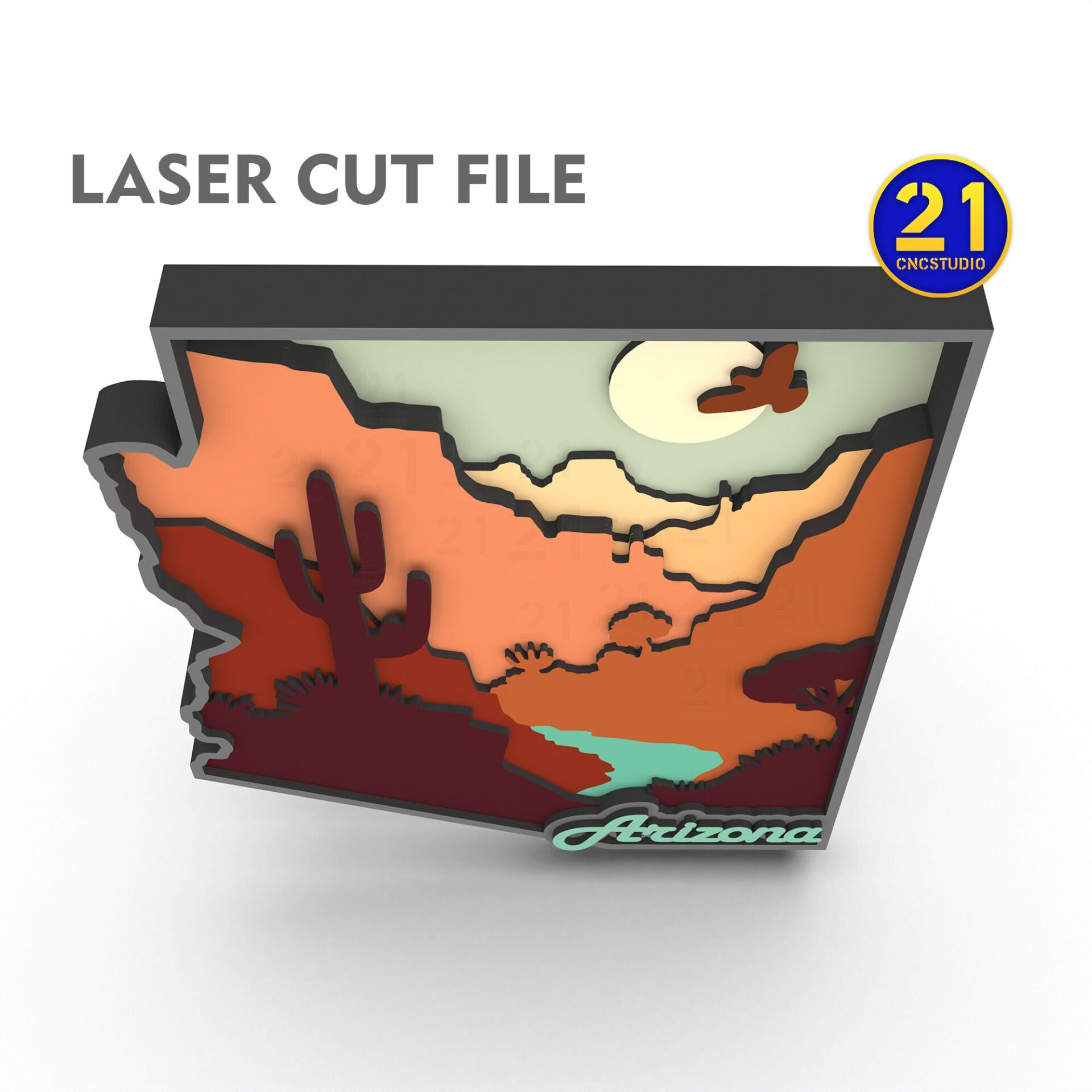

Front visualization of Arizona-shaped layered art with orange desert scenery, cacti, water and a bird against a pale circular sun
AI-assisted model visualization based on 21CNCStudio design renders.

01 /The design

Seven layers of desert scenery.

The Arizona silhouette frames cacti in the foreground, distant landforms and a pale circle behind the flying bird. Contrasting layers give the scene its depth.

The design is intended for 3 mm plywood, with a recommended minimum size of 260 × 219 mm. The customer photograph shows a completed version with orange, green and blue layers.

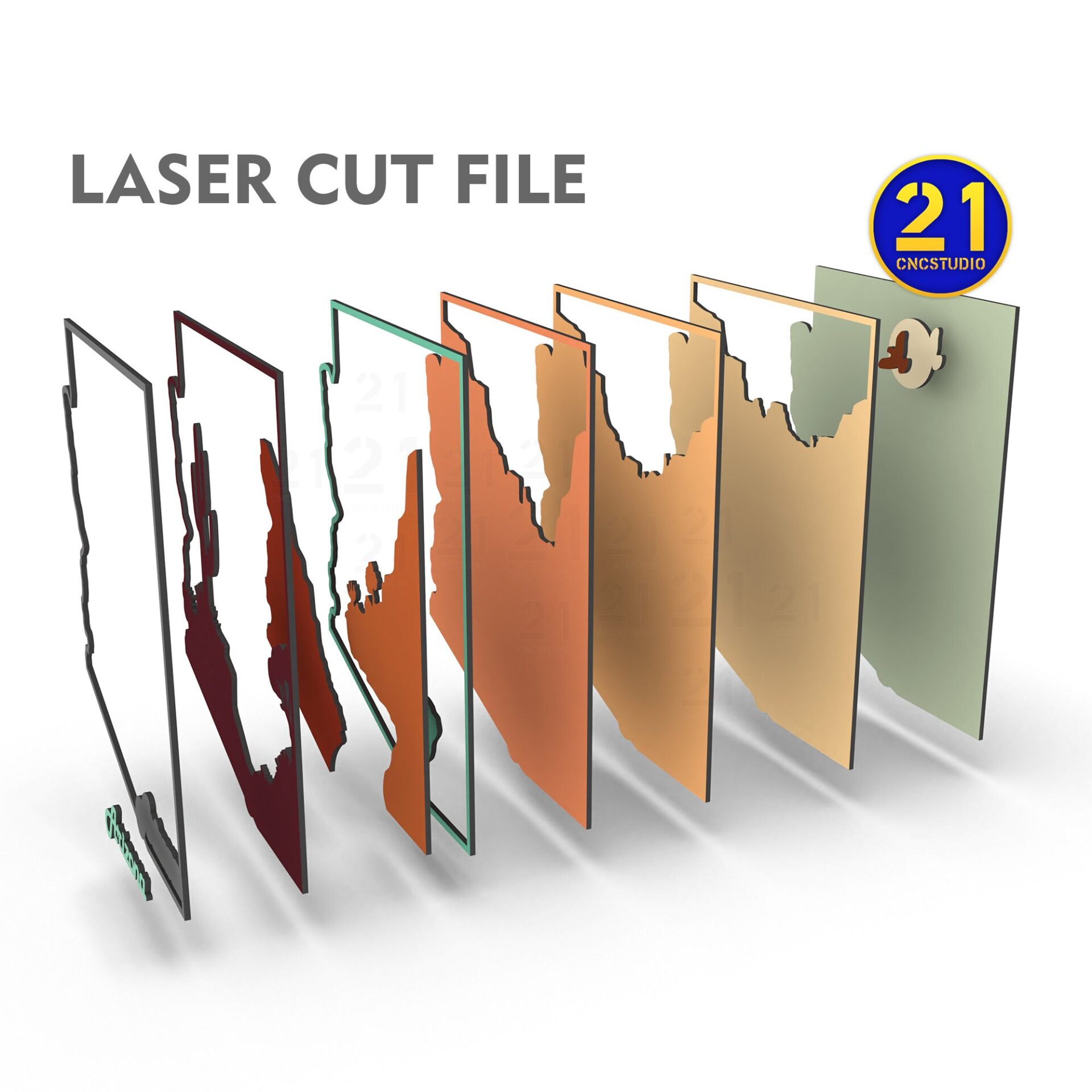

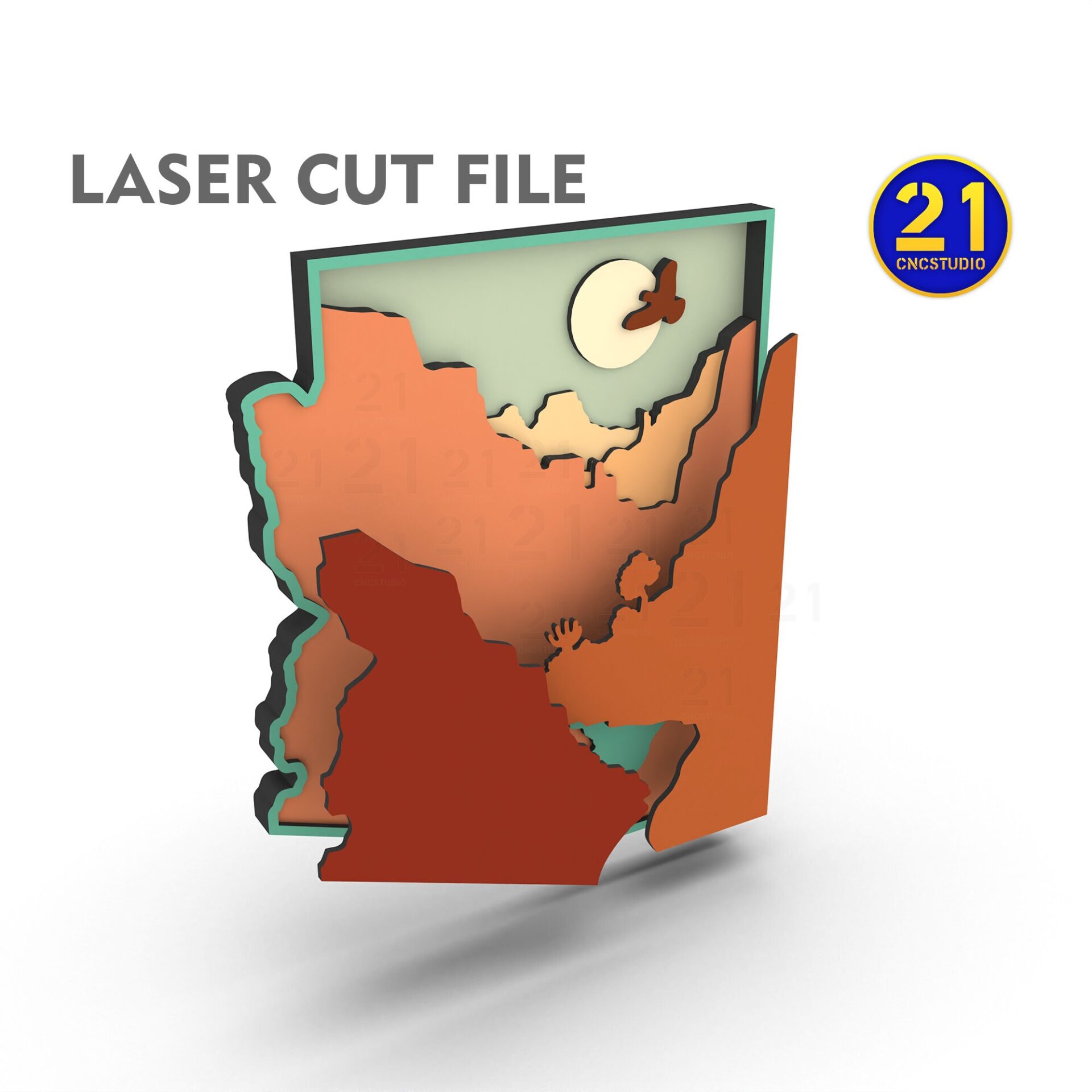

Seven-layer scene

Arrange the matching layers in order to build the landscape.

Arizona silhouette

The state outline and lettering shape the finished artwork.

A physical example

The customer build shows one choice of colour and finish.

A real build

A physical build, with the maker’s choice of materials and finish.

Customer-built Arizona layered map with orange desert scenery, green cacti and a bird against a pale circular sun.
Customer build from an Etsy review. Material, colours and finish are the maker’s own example.

02 /At your workbench

Choose your material.Make it fit.

01 /

Check the detail.

Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.

02 /

Keep the layers aligned.

Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.

03 /

Stack in order.

Arrange the cut layers in order and check their alignment before fixing them together.

Plan this build.

Respect the recommended minimum size and test the fine cactus and foreground details. Keep every layer at one scale and dry-stack the parts before fixing them together.

At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.

Before you start.

Design
Seven-layer Arizona state art
Vector formats
SVG, DXF, AI, CDR, EPS
Recommended minimum size
260 × 219 mm
Material
3 mm plywood
What material is the Arizona design intended for?

The listing specifies 3 mm plywood. Measure your actual material and check the fine details and layer arrangement before cutting.

What do I receive?

SVG, DXF, AI, CDR and EPS design files for the seven-layer artwork. An assembly guide is not confirmed. No physical wall art or material is supplied.

Can I change the scale?

Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.

Can I use the design commercially?

The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.

03 /From the studio to your workbench

Make your Arizona scene.

View the Arizona Layered Map file package and its current terms on Etsy.

View files on EtsyDigital design files.
No physical model, material or hardware is shipped.
