Layered Cross / Laser-cut design
A cross. Six layers.
SVG, DXF and CDR files for a six-layer ornamental cross, with PNG images. Cut and stack the floral tracery to make a religious wall display or a piece for a home altar.
Digital design · SVG + DXF + CDR + PNG
No physical model or materials are shipped.
01 /The design
Floral tracery follows the cross.
Curved leaves and repeating openings run through the centre and out along the arms. Contrasting front and back finishes separate the ornament from the deeper shapes beneath it.
The design uses six layers. SVG, DXF and CDR vectors are supplied with PNG image files; there is no assembly instruction guide.
Six-layer cross

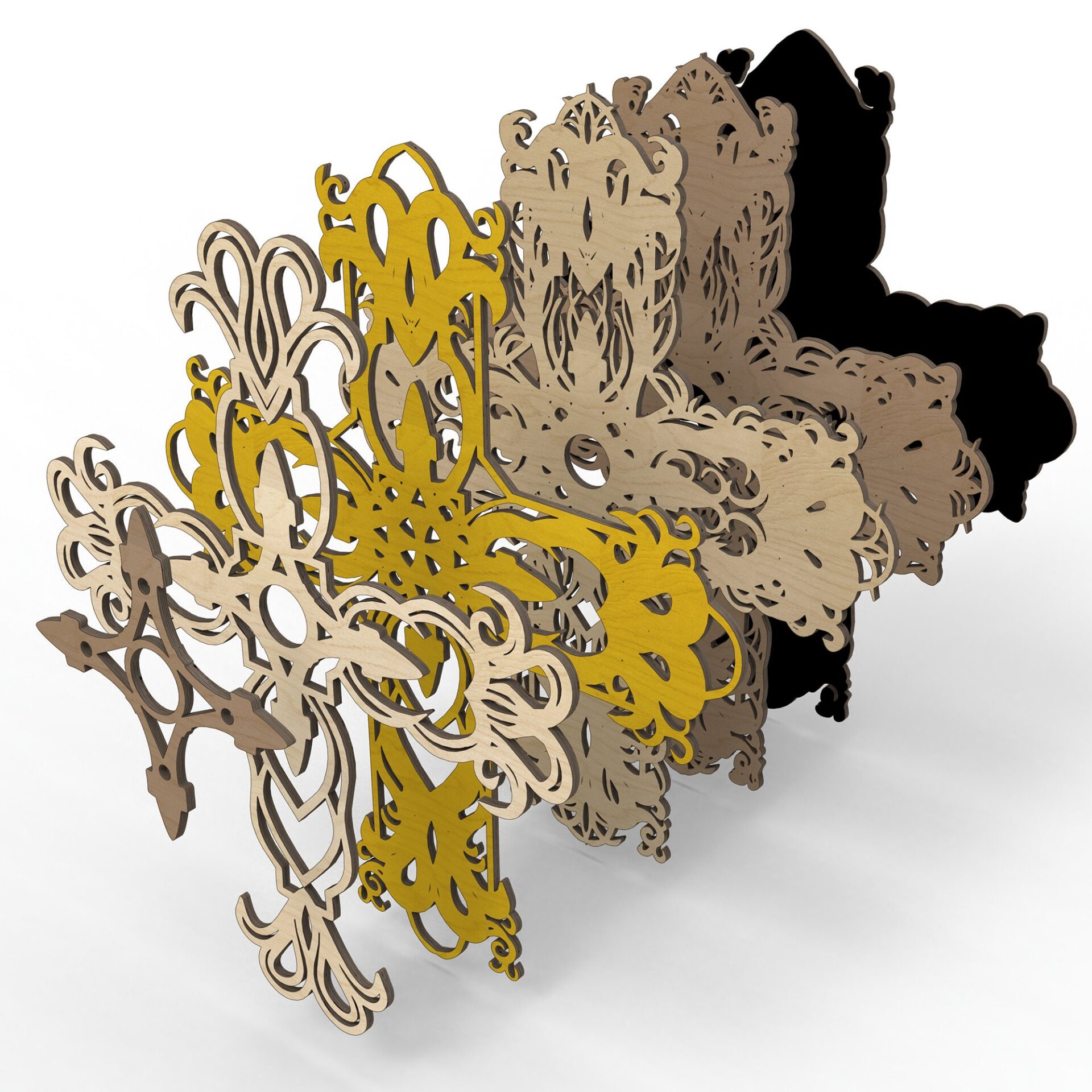

Stack the matching shapes to form the ornamental composition.
Floral detail
Repeated curves and narrow openings follow the arms of the cross.
Vector and image files
Prepare the cut from a supported vector format and inspect the supplied PNG images.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the current file dimensions and the narrow tracery before choosing your cutting size. Use one scale for all six layers, cut a detailed test section and check the stack before fixing it together.
Before you start.
- Design
- Six-layer ornamental cross
- Vector formats
- SVG, DXF, CDR
- Additional format
- PNG image files
- Assembly guide
- Not included
Does the six-layer cross include an assembly guide?
No. Inspect the supplied layer shapes and their order before cutting, then dry-stack them to check alignment before fixing the artwork together.
What do I receive?
SVG, DXF and CDR design files plus PNG images for the six-layer cross. No assembly instruction guide is included. No physical cross, material or mounting hardware is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
Contact 21CNCStudio to discuss permission before commercial use. Do not redistribute the digital files without the author’s permission.
03 /From the studio to your workbench
Build the layered cross.
View the Layered Cross file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
