Lisbon Street Map / Laser-cut design
Lisbon. Four map layers.
SVG, DXF and CDR files for a four-layer Lisbon street map. Choose a round, square or hexagonal frame around the road network and blue waterfront.
Digital design · SVG + DXF + CDR
No physical model or materials are shipped.
01 /The design
Street detail meets the water.

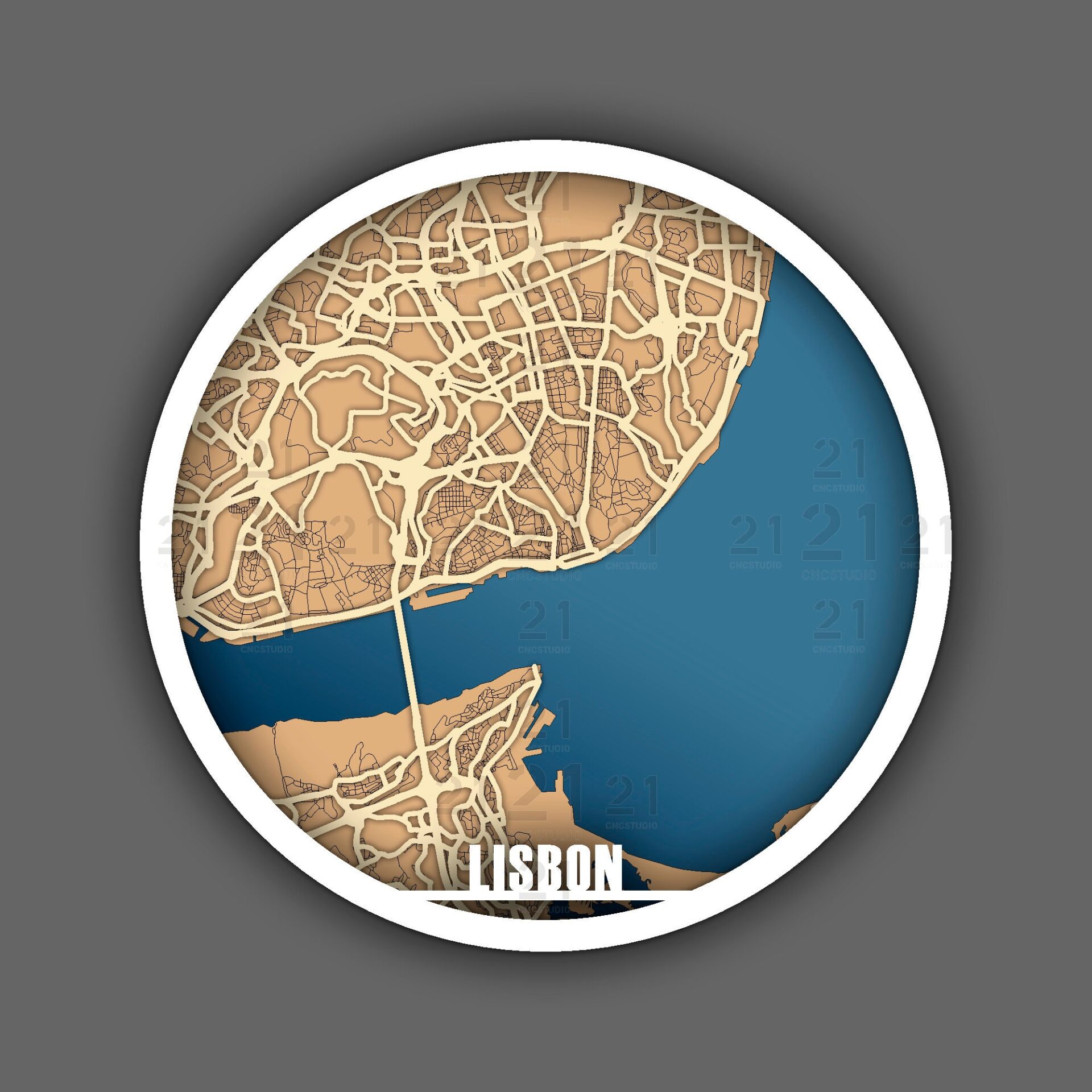

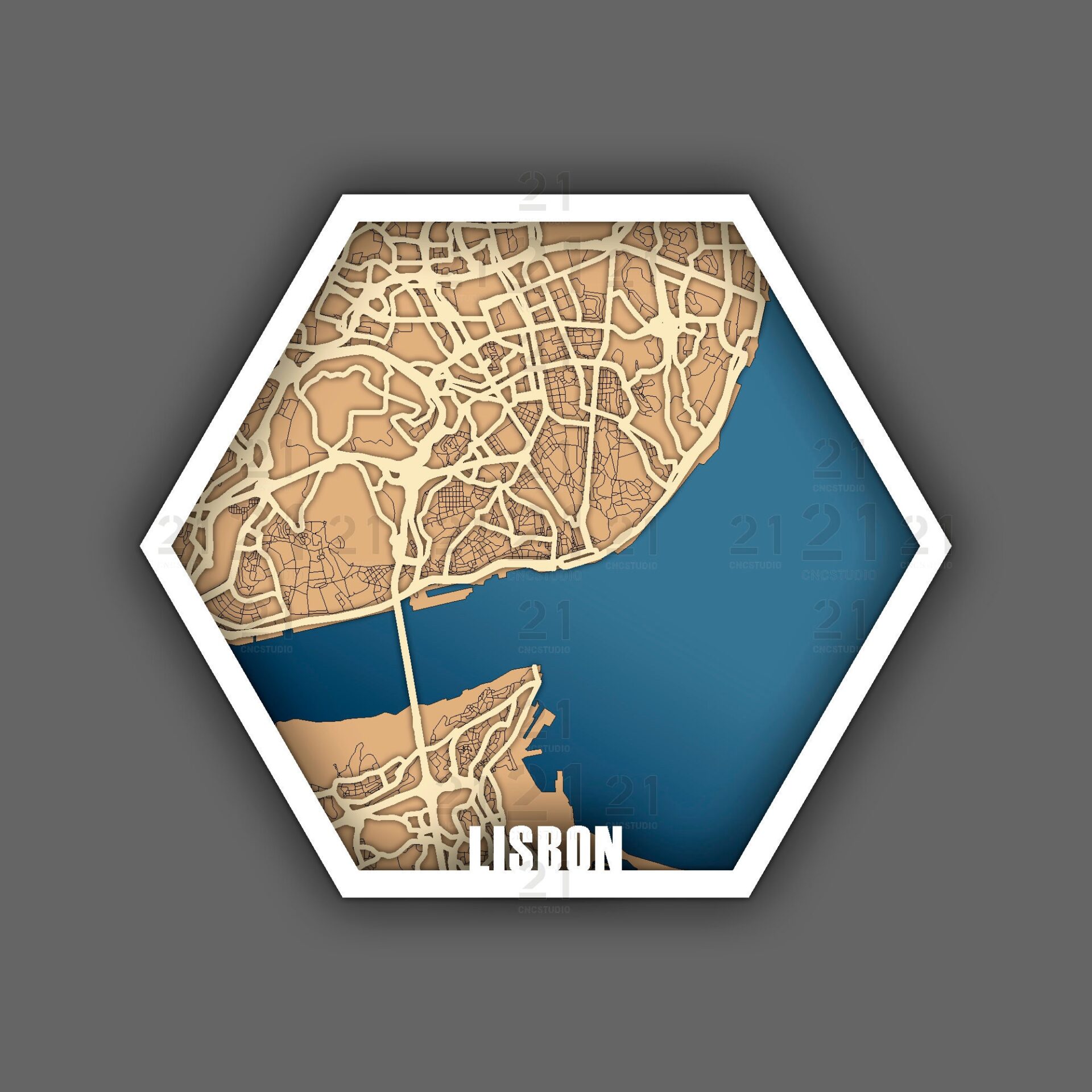

The dense road pattern sits above the broad blue water, with Lisbon lettering along the edge. The preview places the three frame shapes together so you can compare their outlines.
The digital package supplies SVG, DXF and CDR designs for the four-layer artwork. Choose your frame before preparing its matching layers and inspect the fine roads at your intended cutting size.
Four map layers
Keep the matching layers together at a common scale.
Three frame choices
Choose the round, square or hexagonal design.
Road and waterfront
Contrasting finishes separate the map detail from the water.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Check the current file dimensions and narrow road connections before choosing sheets. Scale all four layers equally, test a detailed section and check the stack before fixing it together.
Before you start.
- Design
- Four-layer Lisbon street map
- Vector formats
- SVG, DXF, CDR
- Frame options
- Round, square or hexagonal
Can I choose a different outline for the Lisbon map?
The design includes round, square and hexagonal frame options. Use the four matching layers for your chosen shape and keep them at the same scale.
What do I receive?
SVG, DXF and CDR files for the four-layer Lisbon street map with three frame shapes. An assembly guide is not confirmed. No physical map or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
Contact 21CNCStudio to discuss permission before commercial use. Do not redistribute the digital files without the author’s permission.
03 /From the studio to your workbench
Choose your Lisbon map shape.
View the Lisbon Street Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
