Car Service & Gas Station / Laser-cut design
Car service. Gas station.
Give your 1:64 car scene a garage and filling station. Cut this multi-level building from SVG or DXF files and follow the included PDF guide.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
An opening garage below the display decks.
The design combines a car service garage and gas station with upper decks and a sloping access ramp. The garage gate opens and closes, so you can arrange the scene with the entrance open or shut.
At the 3 mm material scale, the listed finished dimensions are 270 mm wide, 270 mm long and 230 mm high. The largest part is 270 mm. Cutting files for 3 mm and 1/8-inch plywood are supplied with a PDF assembly guide.
Opening garage gate
Position the gate open or closed in your scene.
Multi-level layout
Decks, railings and the ramp give you several viewpoints around the building.
1:64 scene
Use your own diecast vehicles to populate the finished display.
Views & details
A closer look.

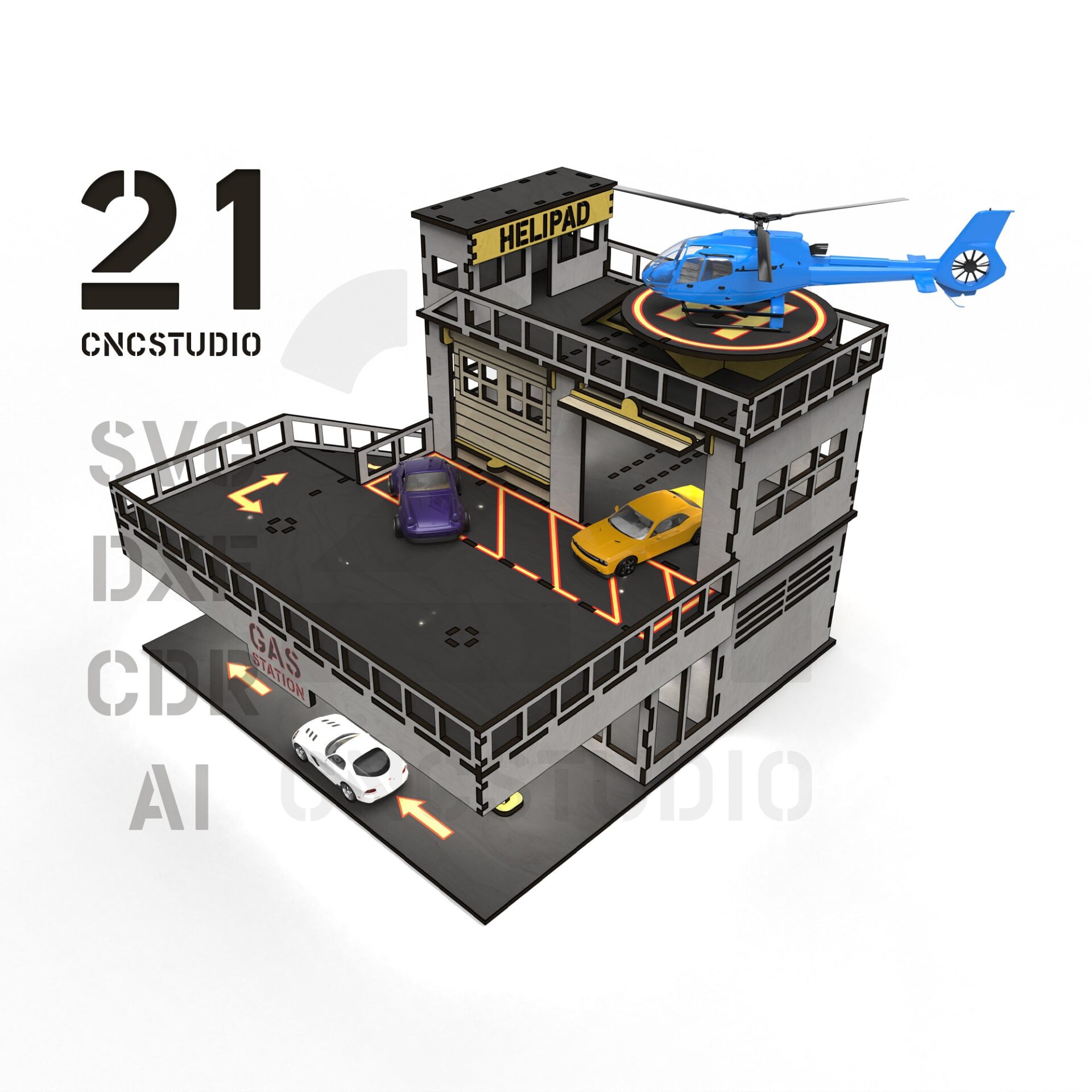

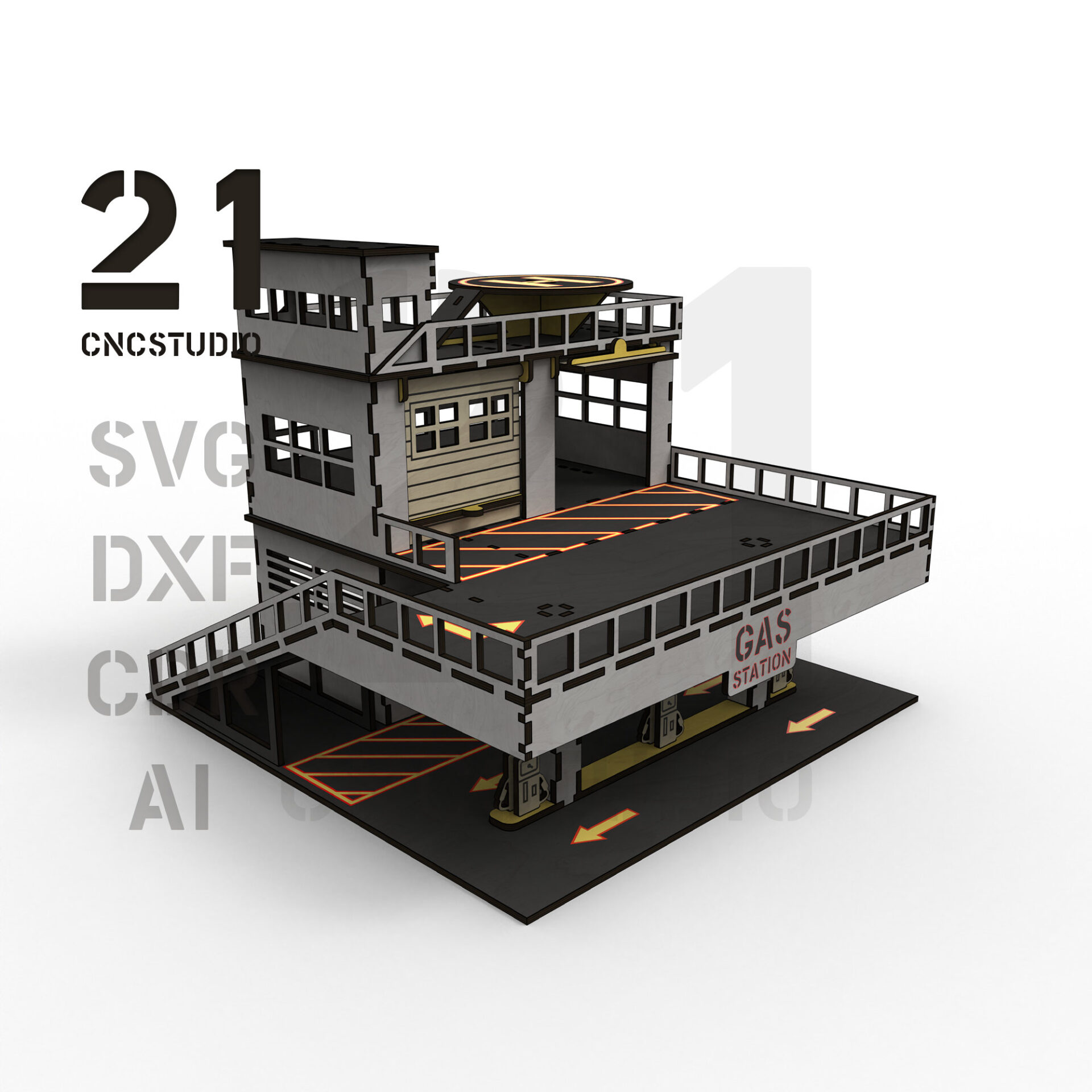

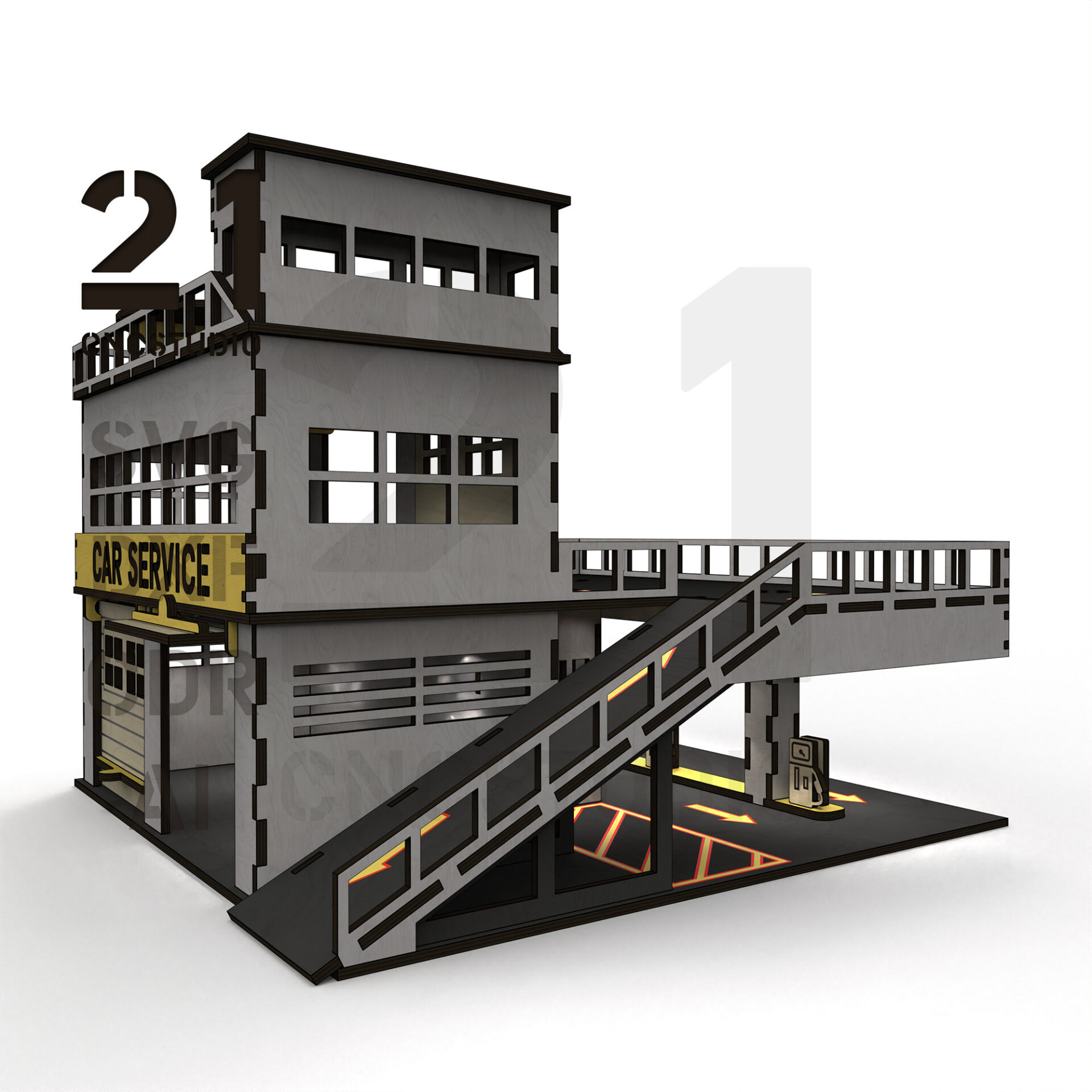

Original design renders from different angles. Select an image for a larger view.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Check the building’s openings against the vehicles you plan to display. Changing the model scale also changes the scene scale and slot widths, so measure the material and test the fit before cutting.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Car service garage and gas station
- Scene scale
- 1:64
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch plywood
- Finished size at 3 mm
- 270 × 270 × 230 mm (W × L × H)
- Largest part
- 270 mm
- Moving feature
- Garage gate opens and closes
Are cars or a helicopter included?
No. This is a digital building-file package. Any vehicles shown in source images are scene props; no physical cars, aircraft, building parts or material are supplied.
What do I receive?
Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
Contact 21CNCStudio to discuss permission before commercial use. The digital files may not be distributed without the author’s permission.
03 /From the studio to your workbench
Build your car-service scene.
View the Car Service & Gas Station file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
