Car Showroom / Laser-cut design

A car showroom. Open the roof.

SVG and DXF files for a 1:64 car showroom with a PDF assembly guide. Tall windows display your miniature cars, while the roof lifts to give access to the interior.

Get the filesExplore the model

Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.

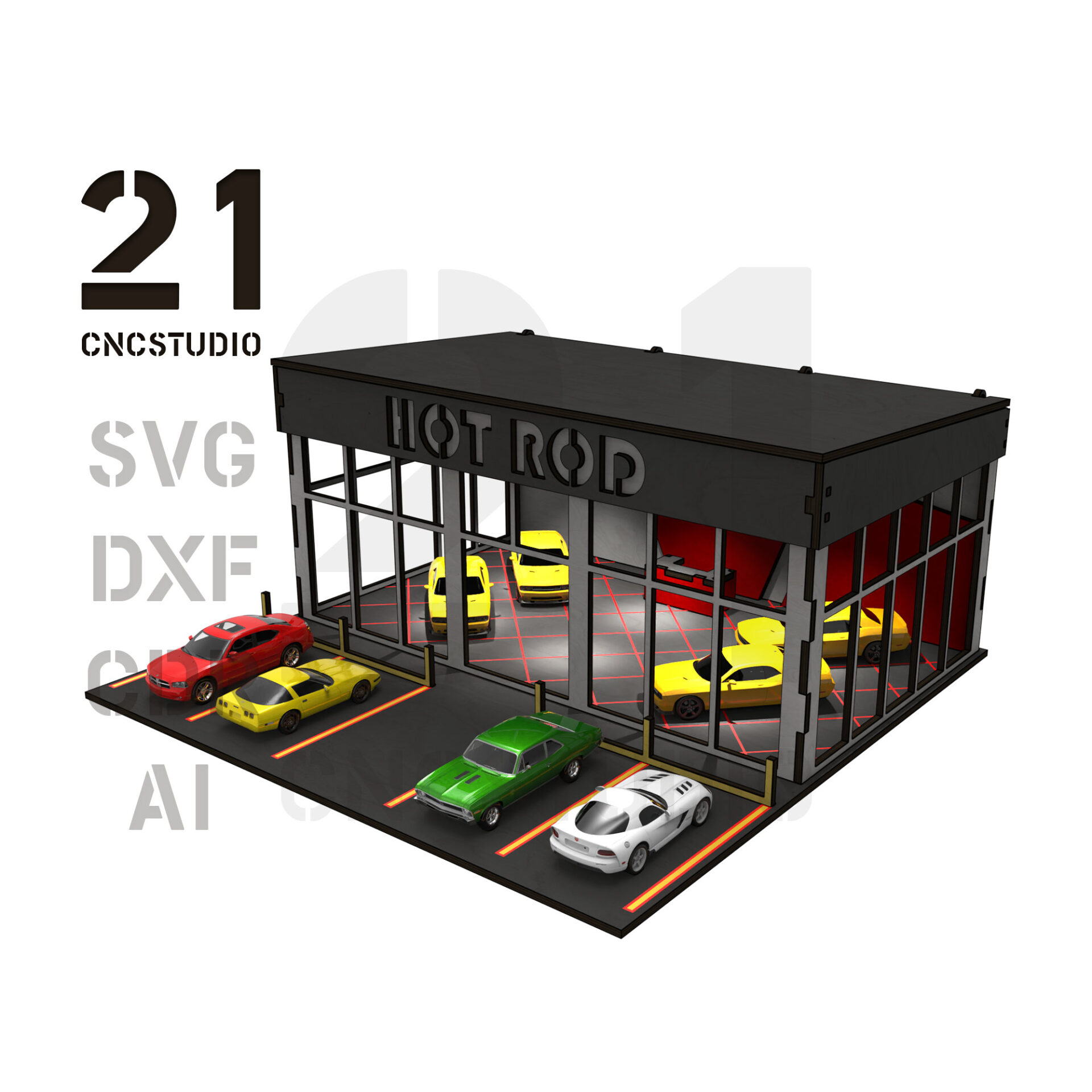

Three-quarter visualization of a Hot Rod car showroom building with tall front windows and marked parking bays
AI-assisted model visualization based on 21CNCStudio design renders.

01 /The design

Put the cars on display. Lift the roof to reach them.

The window grid keeps the display visible from the front and side, while the upward-opening roof gives access to the interior. Original renders show the roof raised and the view from behind.

With 3 mm plywood, the finished building measures 276 × 276 × 127 mm; the largest part is 276 mm. The cars in the renders and customer photograph are display examples, not part of the building design.

1:64 display building

Use the showroom as a setting for your own miniature cars.

Upward-opening roof

Open the roof to arrange or reach the display inside.

Assembly PDF

Follow the guide with the supplied SVG and DXF designs.

Views & details

Different views, details and a physical build. Select an image for a larger view.

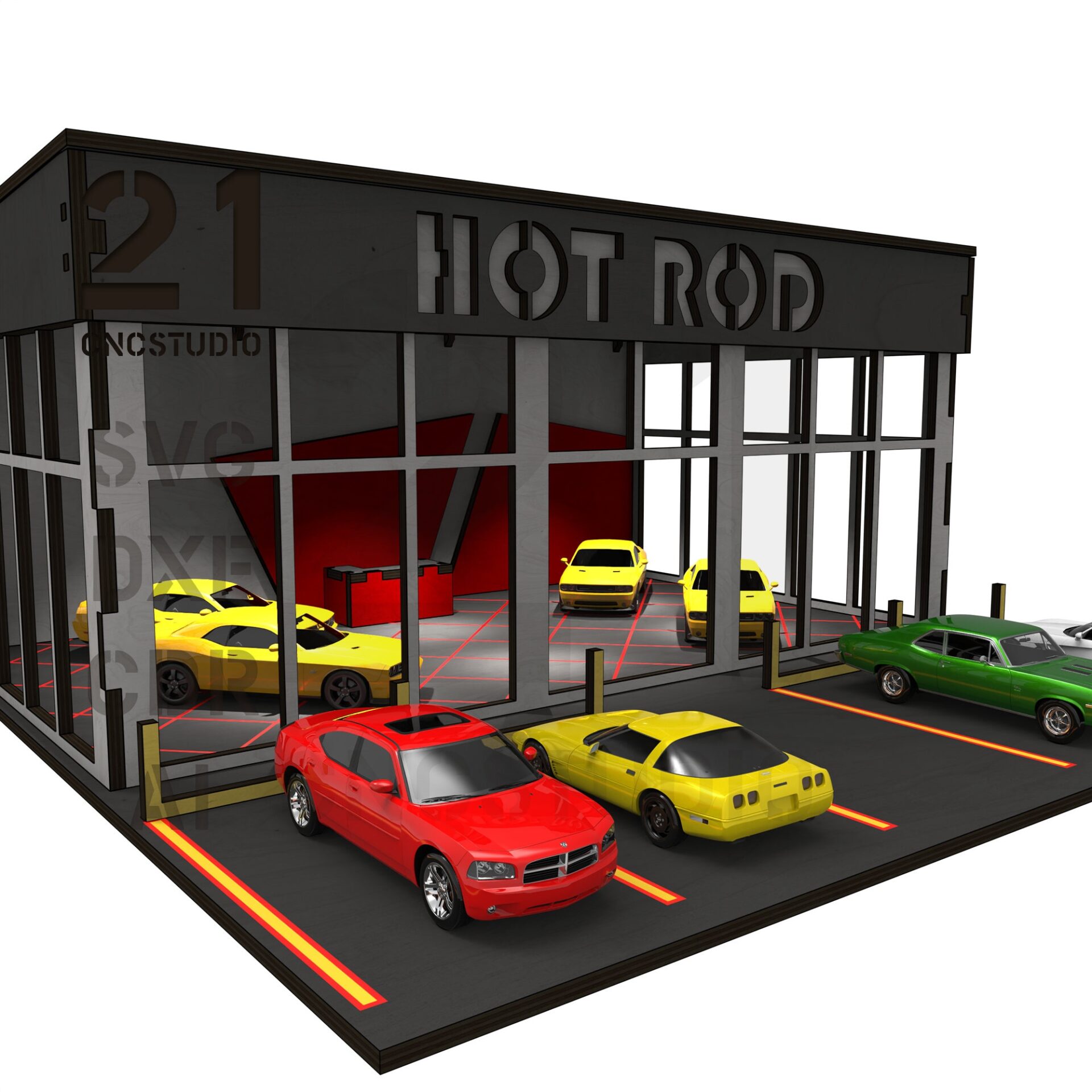

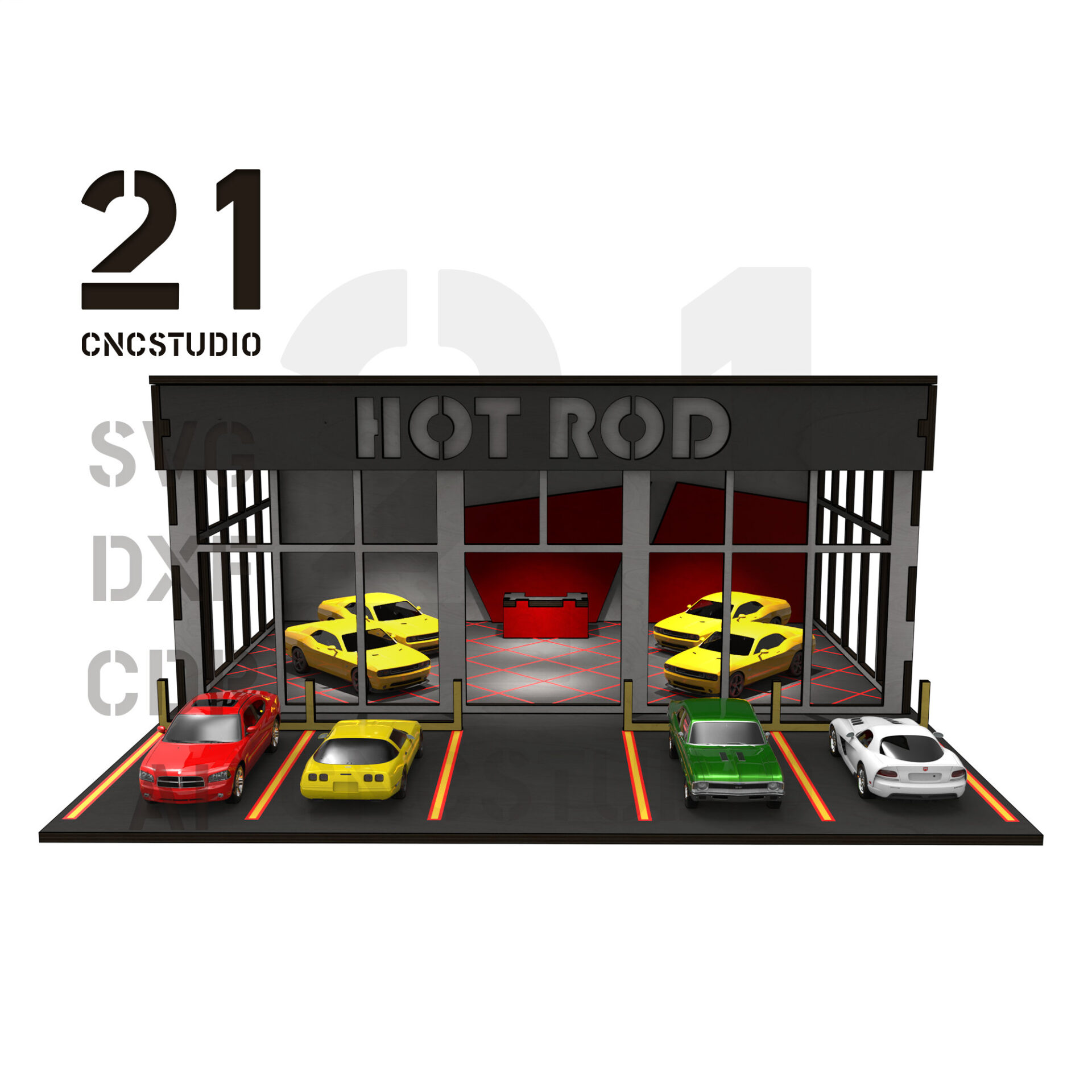

Front detail render of the 1:64 Car Showroom with Hot Rod lettering and example cars inside and outside.
Original 21CNCStudio design render. Front detail render of the 1:64 Car Showroom with Hot Rod lettering and example cars inside and outside. The cars are display examples and are not included with the building design.

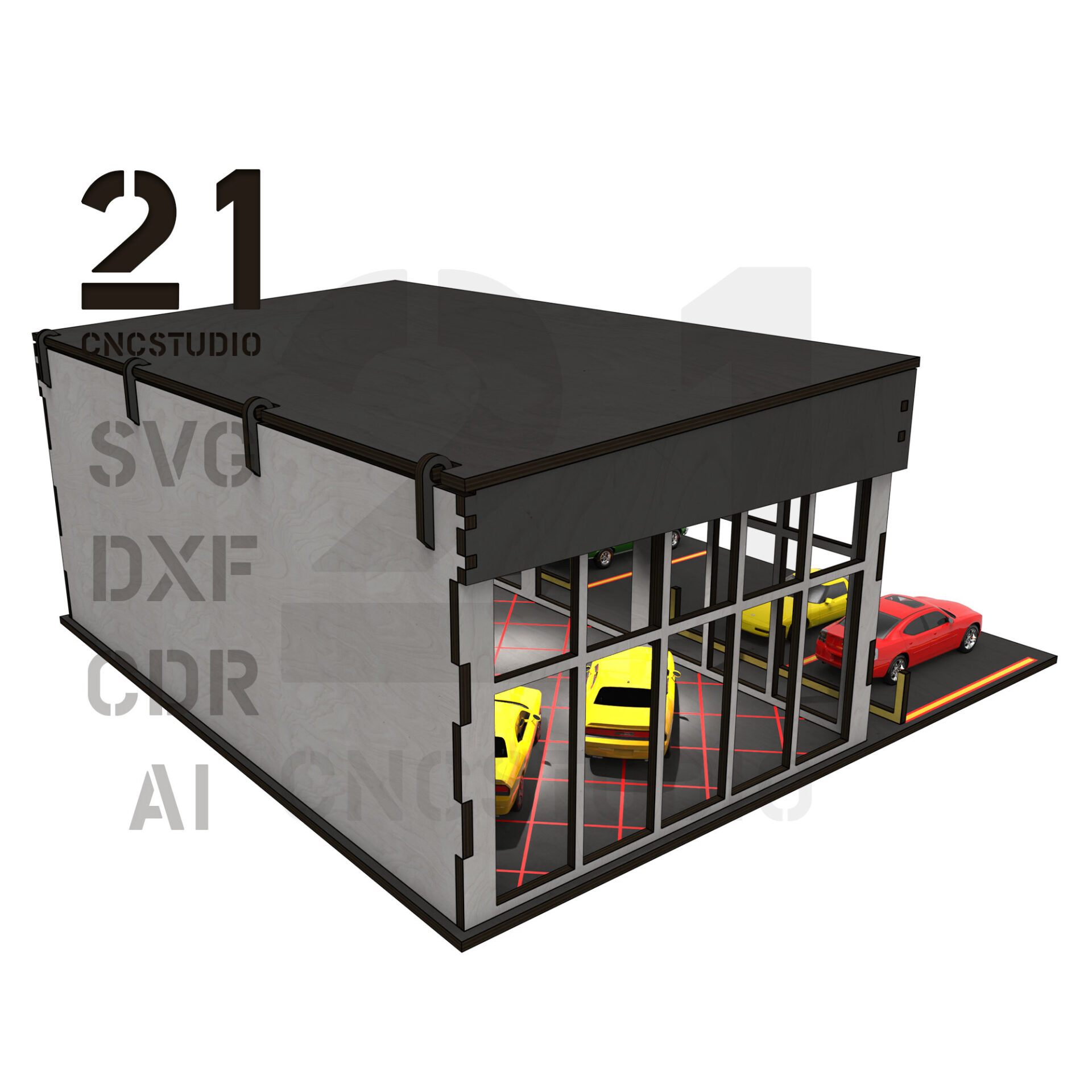

Rear three-quarter render of the 1:64 Car Showroom with example cars beside the window wall.
Original 21CNCStudio design render. Rear three-quarter render of the 1:64 Car Showroom with example cars beside the window wall. The cars are display examples and are not included with the building design.

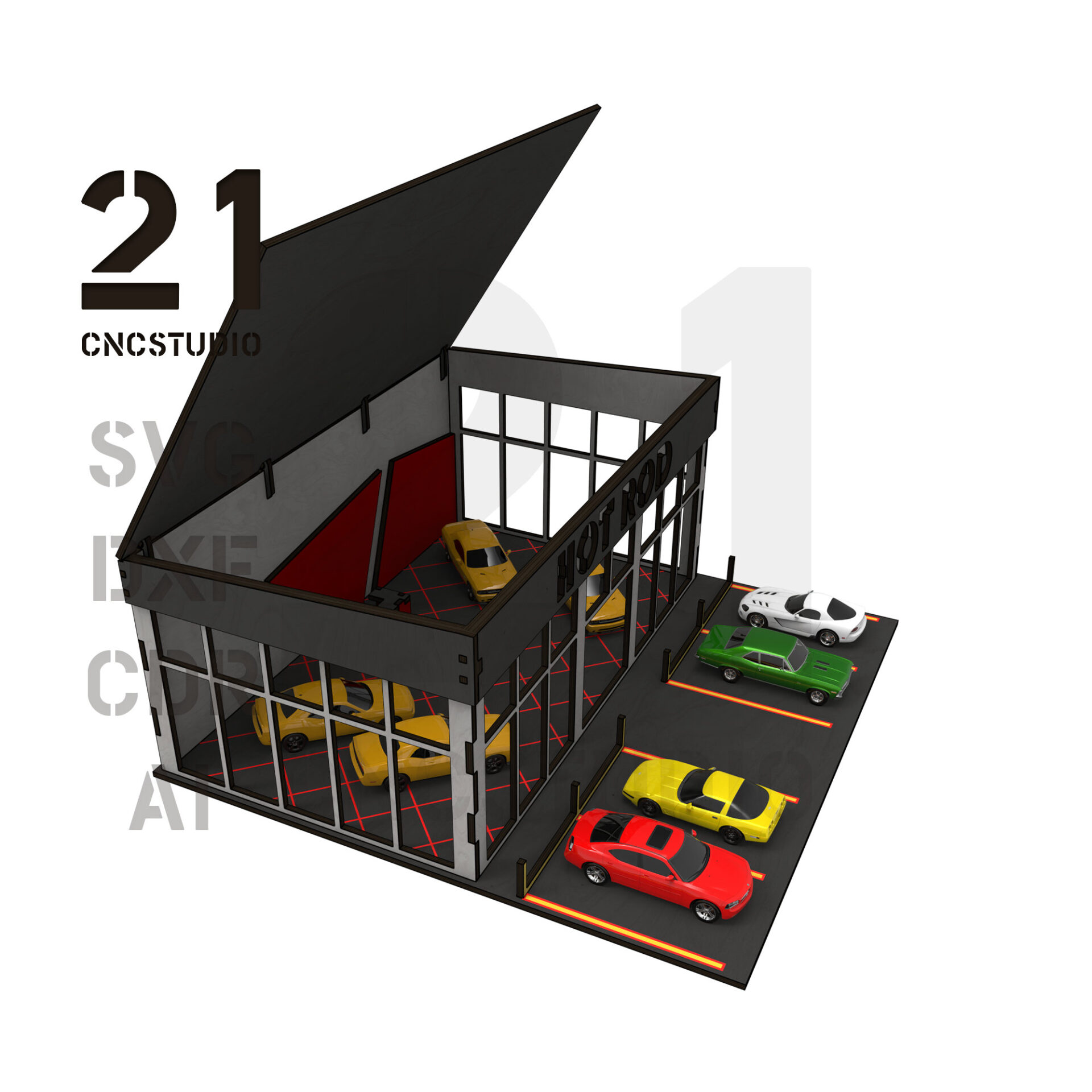

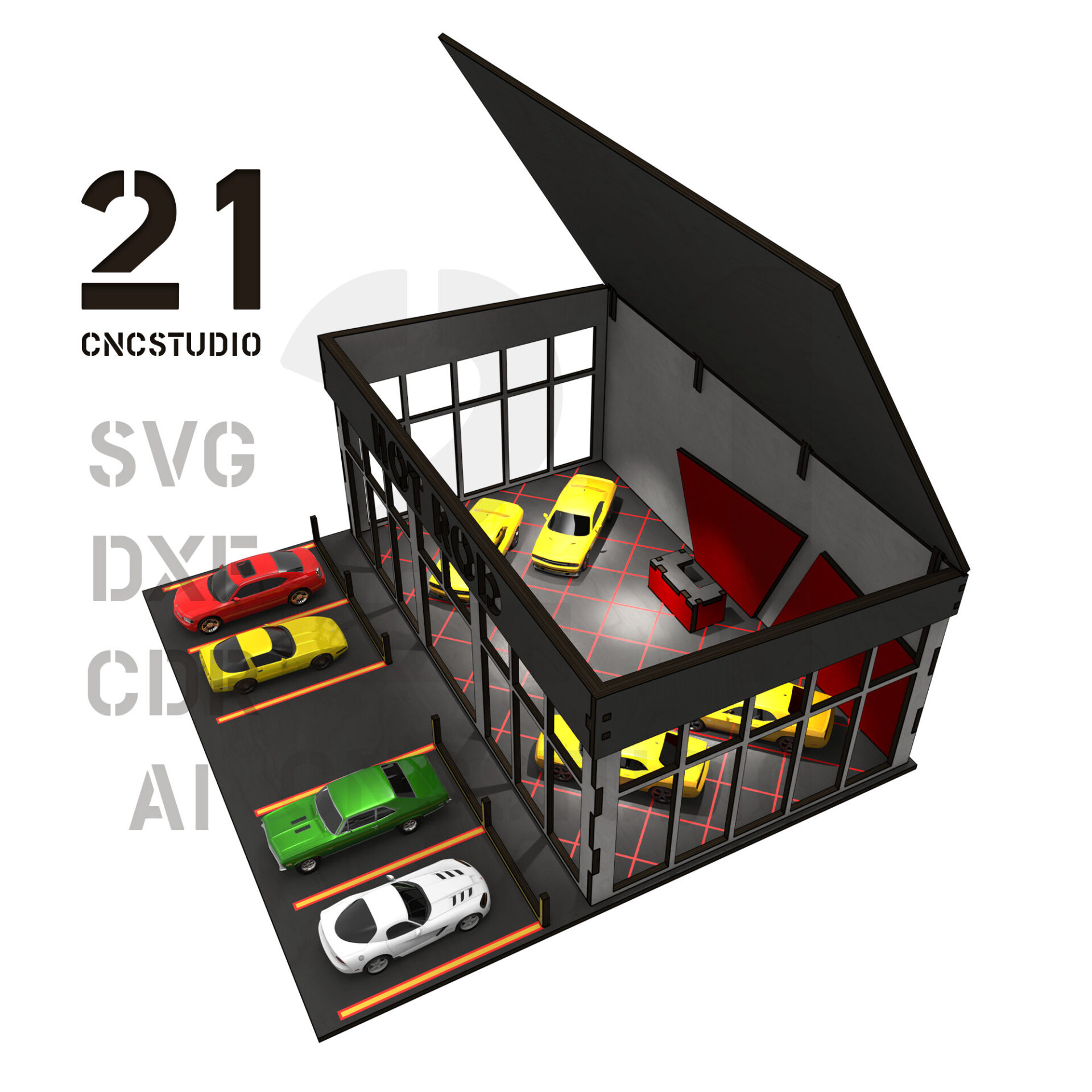

High-angle render of the 1:64 Car Showroom with its roof raised above example cars.
Original 21CNCStudio design render. High-angle render of the 1:64 Car Showroom with its roof raised above example cars. The cars are display examples and are not included with the building design.
Customer-built Hot Rod car showroom with miniature cars inside and outside, on a workbench.
Customer build from an Etsy review. Material, colours and finish are the maker’s own example. The cars are display examples and are not included with the building design.

02 /At your workbench

Choose your material.Make it fit.

01 /

Measure first.

Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.

02 /

Check the layout.

Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.

03 /

Follow the guide.

Use the PDF assembly guide to identify the parts and work through the construction sequence.

Plan this build.

Check the largest 276 mm part against your usable cutting area. Choose the file version for your measured plywood and test the joints and roof movement before finishing the display.

At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.

Before you start.

Scale
1:64
Design files
SVG + DXF
Assembly guide
PDF included
Material versions
3 mm / 1/8 inch plywood
Finished size at 3 mm
276 × 276 × 127 mm (W × L × H)
Largest part at 3 mm
276 mm
Access
Roof opens upward
Are the cars in the pictures included?

No. The cars illustrate how the showroom can be used. The download contains the building design and its assembly guide; bring your own miniature cars.

What do I receive?

SVG and DXF cutting files for the showroom, with a PDF assembly guide and versions for 3 mm and 1/8-inch plywood. Cars, physical buildings and materials are not included.

Can I change the scale?

Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.

Can I use the design commercially?

Contact 21CNCStudio to discuss permission before commercial use. Do not redistribute the digital files without the author’s permission.

03 /From the studio to your workbench

Build a showroom for your cars.

View the Car Showroom file package and its current terms on Etsy.

View files on EtsyDigital design files.
No physical model, material or hardware is shipped.
