Layered Motorcycle / Laser-cut design
Motorcycle. Five layers.
SVG, DXF, AI and CDR laser-cut files for five-layer motorcycle wall art. Cut and stack the profile to bring out the wheels, engine and raised handlebars.
Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.
01 /The design

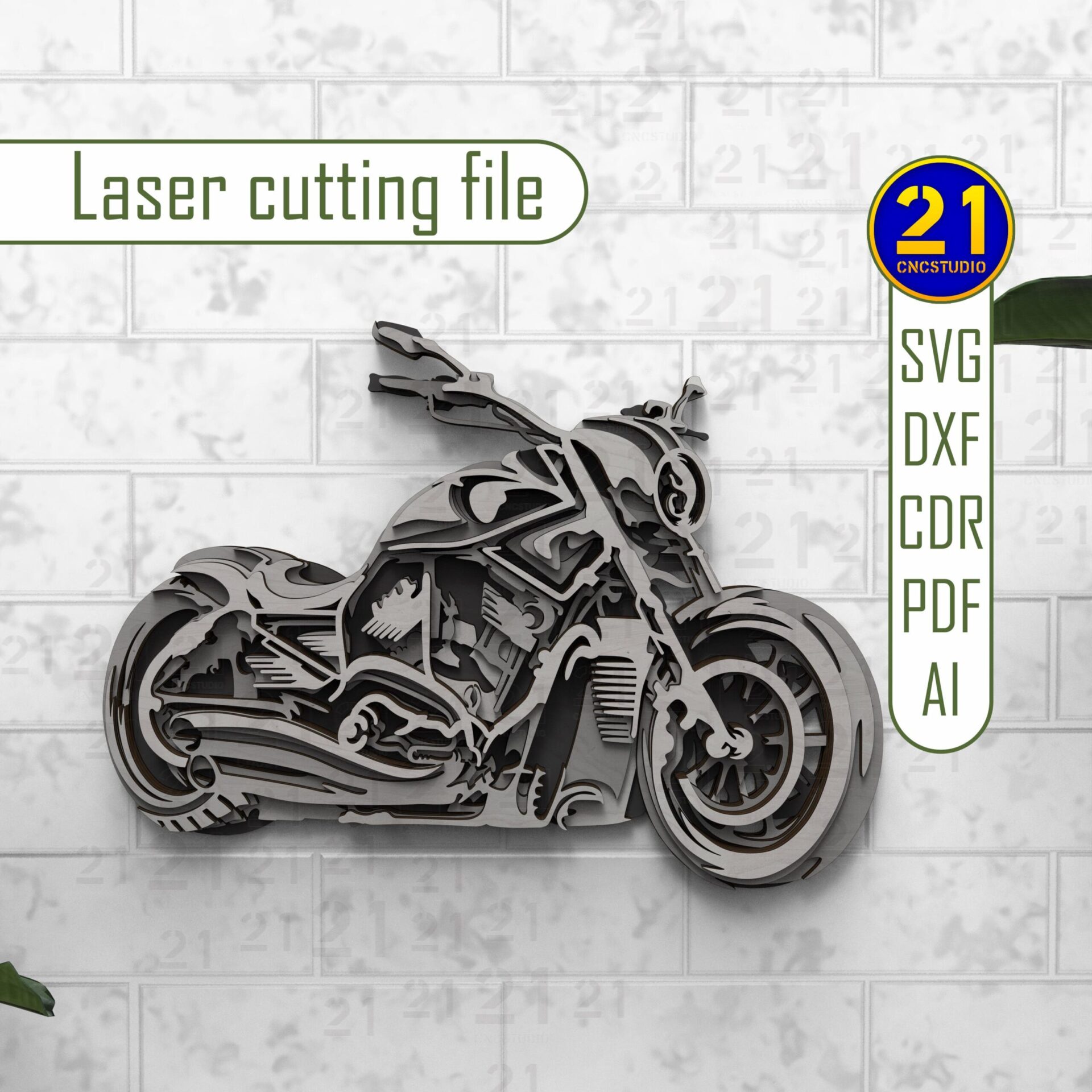

The motorcycle in profile.
The side view keeps both wheels, the engine and the raised handlebars visible. Each layer brings another part of the motorcycle forward, creating depth within the outline.
The listed recommended size is 290 × 213 mm. Plywood, MDF or acrylic are described for the design, with 3 mm and 1/8 inch material options.

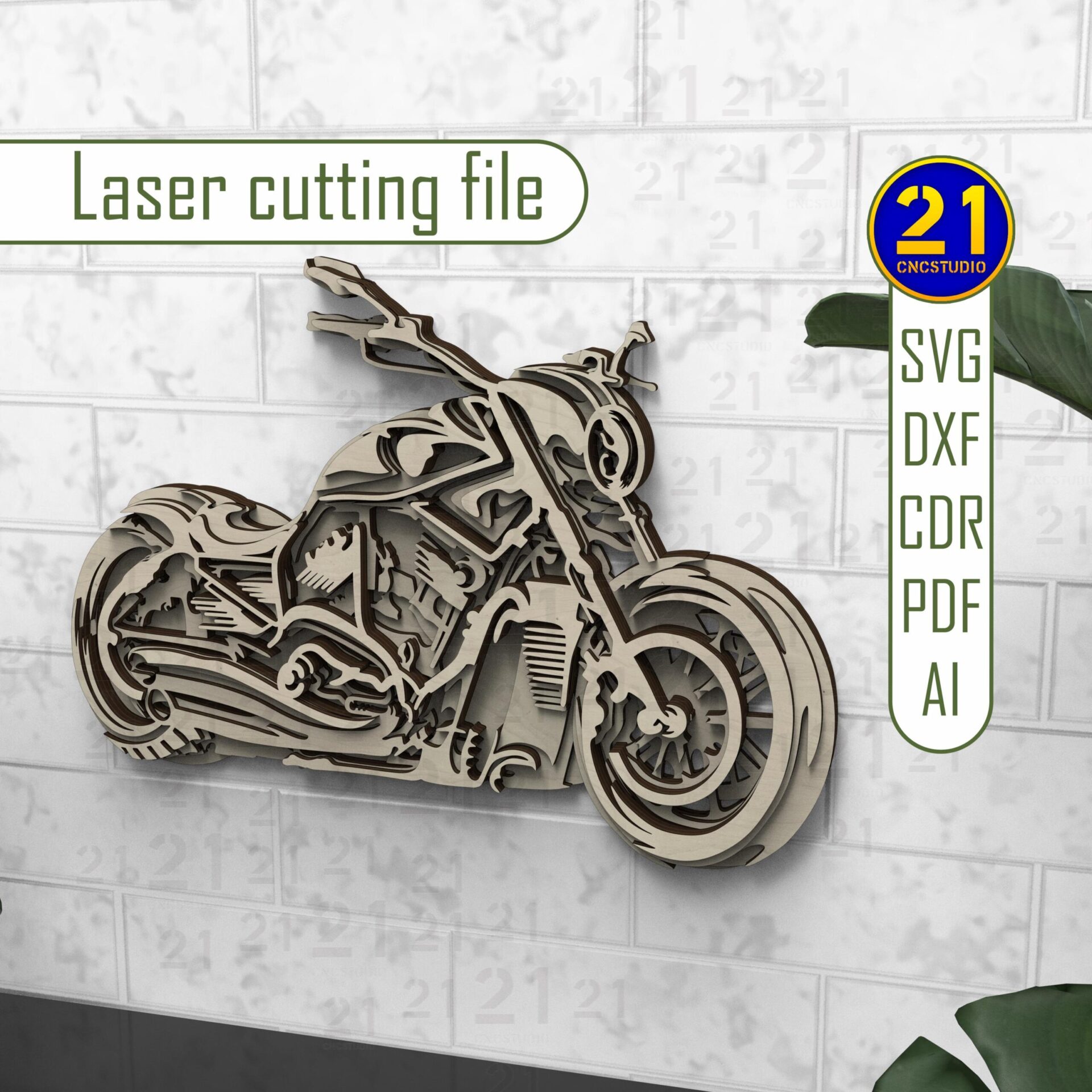

Five-layer wall art.
Stacked shapes form a decorative motorcycle profile.
Open detail.
Cutouts separate the wheel, frame and engine shapes.
A PDF design file.
PDF is included as a design format. It is not an assembly guide.
A real build
Made from the files.
A physical build, with the maker’s choice of materials and finish.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Keep all five layers at the same scale. Lay them out in order and check the narrow connections around the frame before fixing the stack together.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Five-layer wall art
- Vector formats
- SVG, DXF, AI, CDR
- Additional file
- PDF design file
- Assembly instructions
- No guide included
- Recommended size
- 290 × 213 mm
- Material
- 3 mm / 1/8 inch plywood, MDF or acrylic
What does the motorcycle download make?
It makes a five-layer motorcycle wall display. SVG, DXF, AI and CDR files come with a PDF design file; the PDF is not an assembly guide.
What do I receive?
SVG, DXF, AI and CDR vector files plus a PDF design file. No assembly instruction guide is included. No physical artwork, material or hardware is shipped.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build the profile, layer by layer.
View the Layered Motorcycle file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
