Jedi Starfighter / Laser-cut design
Jedi Starfighter.

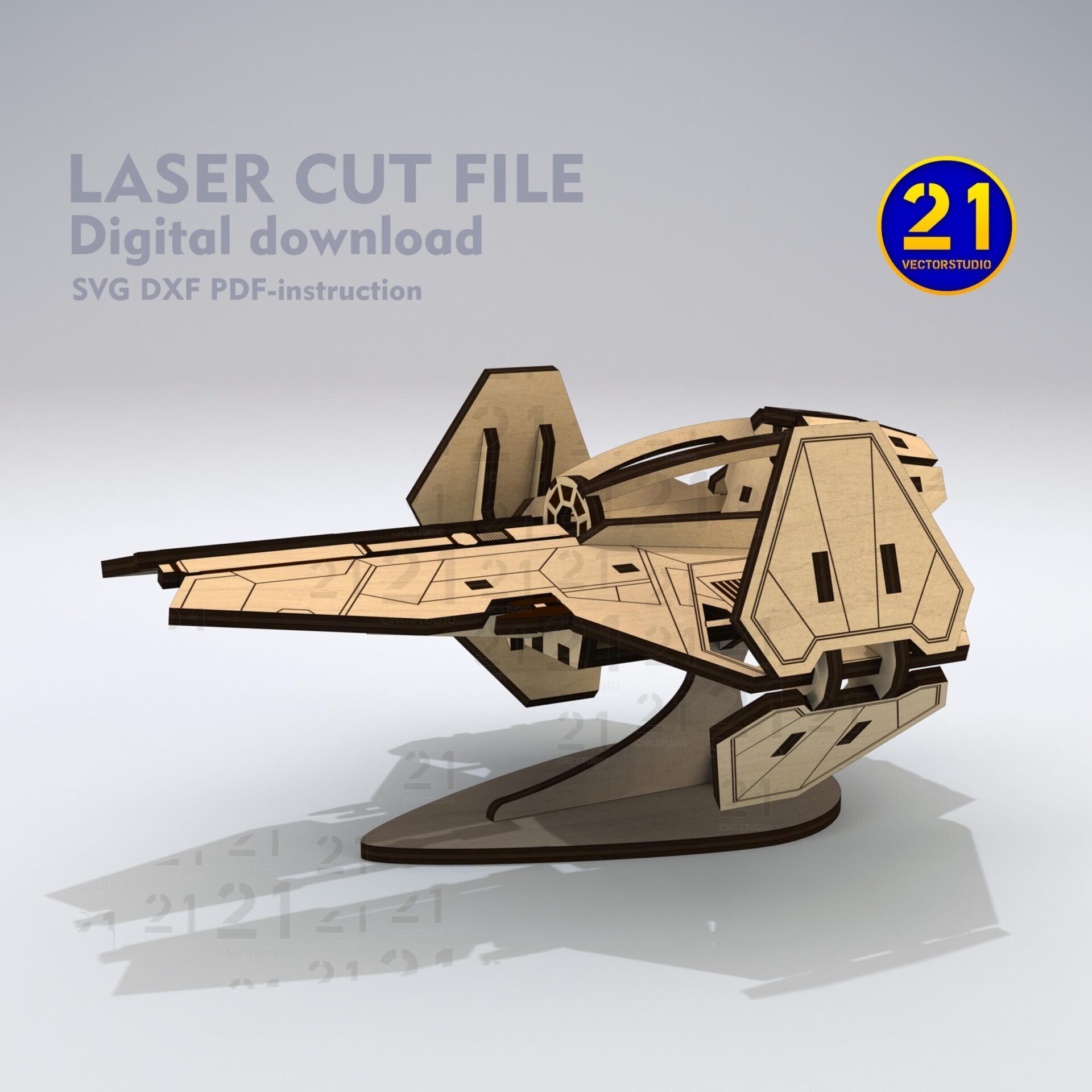

A compact Jedi Starfighter with raised wing panels, etched detail and a display stand. This Star Wars fan-art design has a free MakerWorld release planned.
Digital design · SVG + DXF · PDF guide · MakerWorld release planned
No physical model or materials are shipped.
01 /The design
A starfighter for a small display.

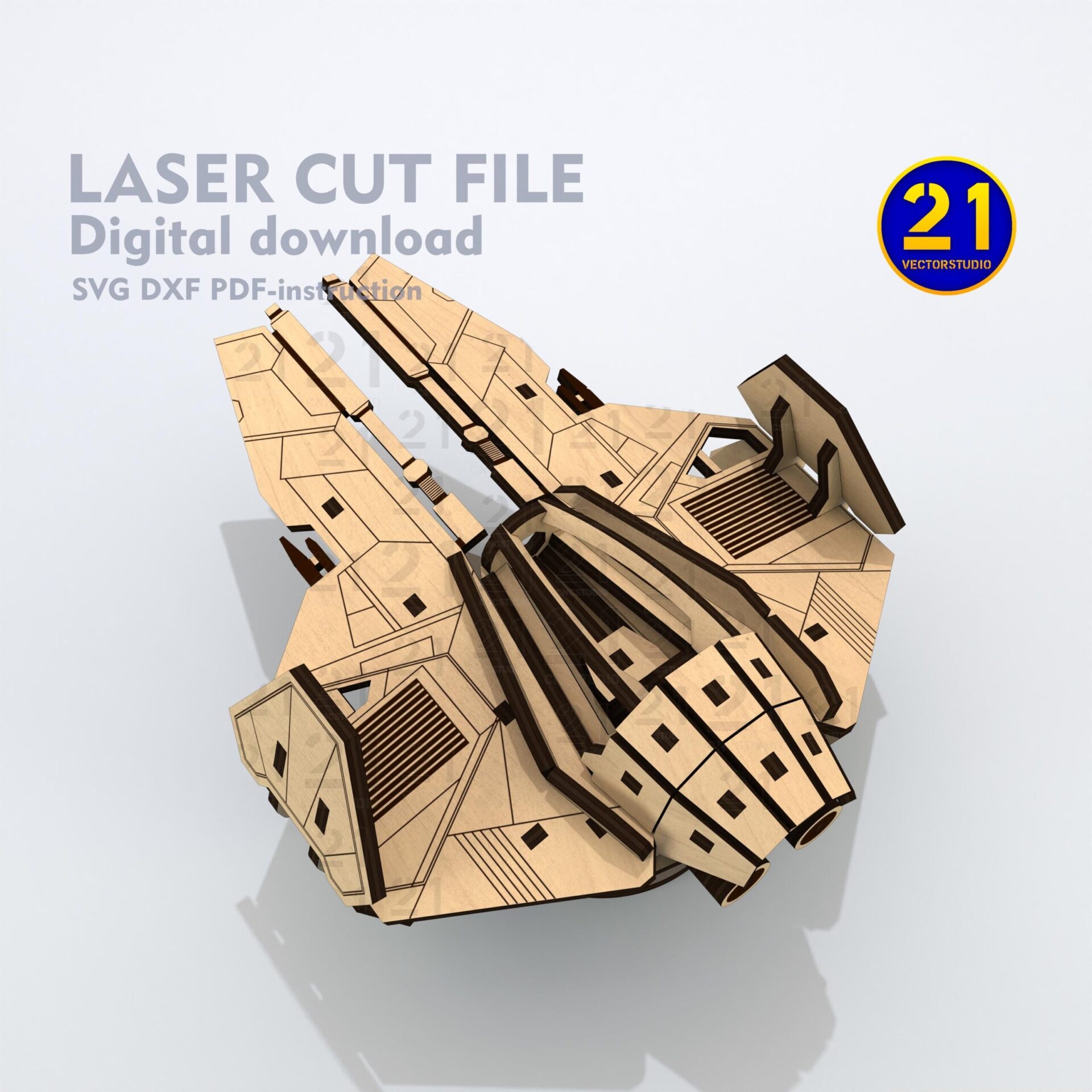

The short nose and raised wing panels give this small spacecraft a recognisable outline. The stand lifts the wooden model above the surface so the underside and wing shapes remain visible.
The documented assembled size is 165 × 135 × 85 mm. The author’s cutting layout fits on one 300 × 300 mm sheet; check the final release files and your machine’s usable area before cutting.
Compact proportions.
The listed model is 165 mm long and 135 mm wide.
Single-sheet layout.
The documented design arranges its parts on one 300 × 300 mm sheet.
Assembly reference.
SVG, DXF and a PDF assembly guide are documented for the design.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Check the release package.
When the files are released, check the included instructions and material versions before beginning the build.
Plan this build.
Choose the released file version that matches your measured plywood thickness. Check the full layout, then test a slot before cutting the remaining parts.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Documented formats
- SVG + DXF
- Documented guide
- PDF assembly instructions
- Material versions documented
- 3 mm / 1/8 inch plywood
- Listed assembled size
- 165 × 135 × 85 mm (L × W × H)
- Listed cutting layout
- One 300 × 300 mm sheet
- Release status
- Free MakerWorld release planned
Does a 300 × 300 mm sheet mean a 300 mm part?
No. That measurement describes the cutting layout. Check individual part sizes and the usable cutting area in the released files.
What do I receive?
SVG and DXF cutting files and a PDF assembly guide are documented for this design. The final MakerWorld package will be checked at release; no download is linked here yet.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
Unofficial fan art for personal, non-commercial use. This design is not affiliated with or endorsed by Lucasfilm or Disney. Commercial-use rights are not offered here.
03 /From the studio to your workbench
A small addition to your fleet.
Free release on MakerWorld planned.
The release page for this design is not linked yet. The final file package will be confirmed when it is published.
Unofficial fan art for personal, non-commercial use. Not affiliated with or endorsed by Lucasfilm or Disney.
Digital design files.No physical model, material or hardware is shipped.
