Dog Clock / Laser-cut design
Three dogs. A floral clock.
SVG, DXF, AI and CDR files for a clock with three dogs and floral detail. Build the layered face with the PDF instructions, using your own clock movement and hands.
Digital design · SVG + DXF + AI + CDR · PDF guide
No physical model or materials are shipped.
01 /The design

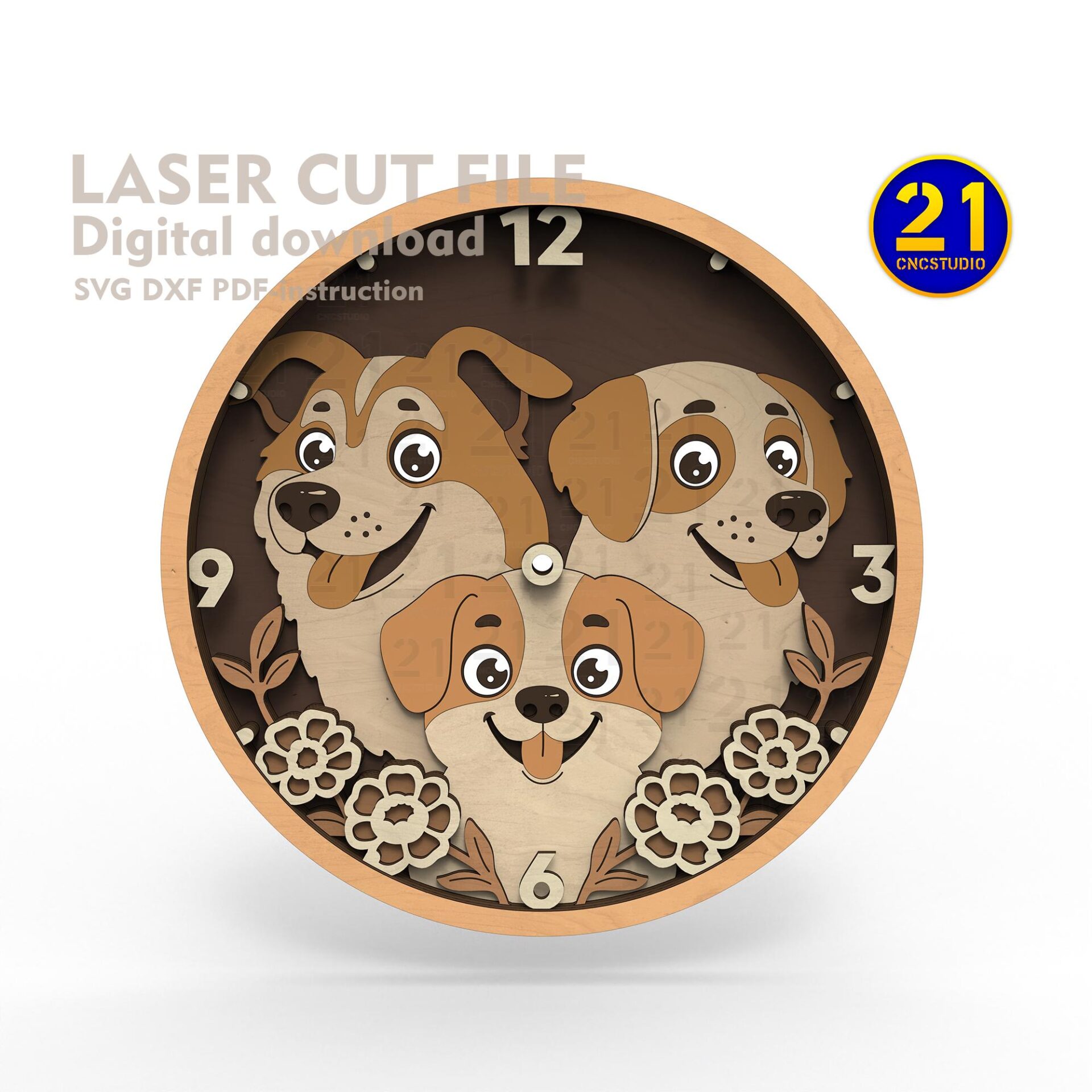

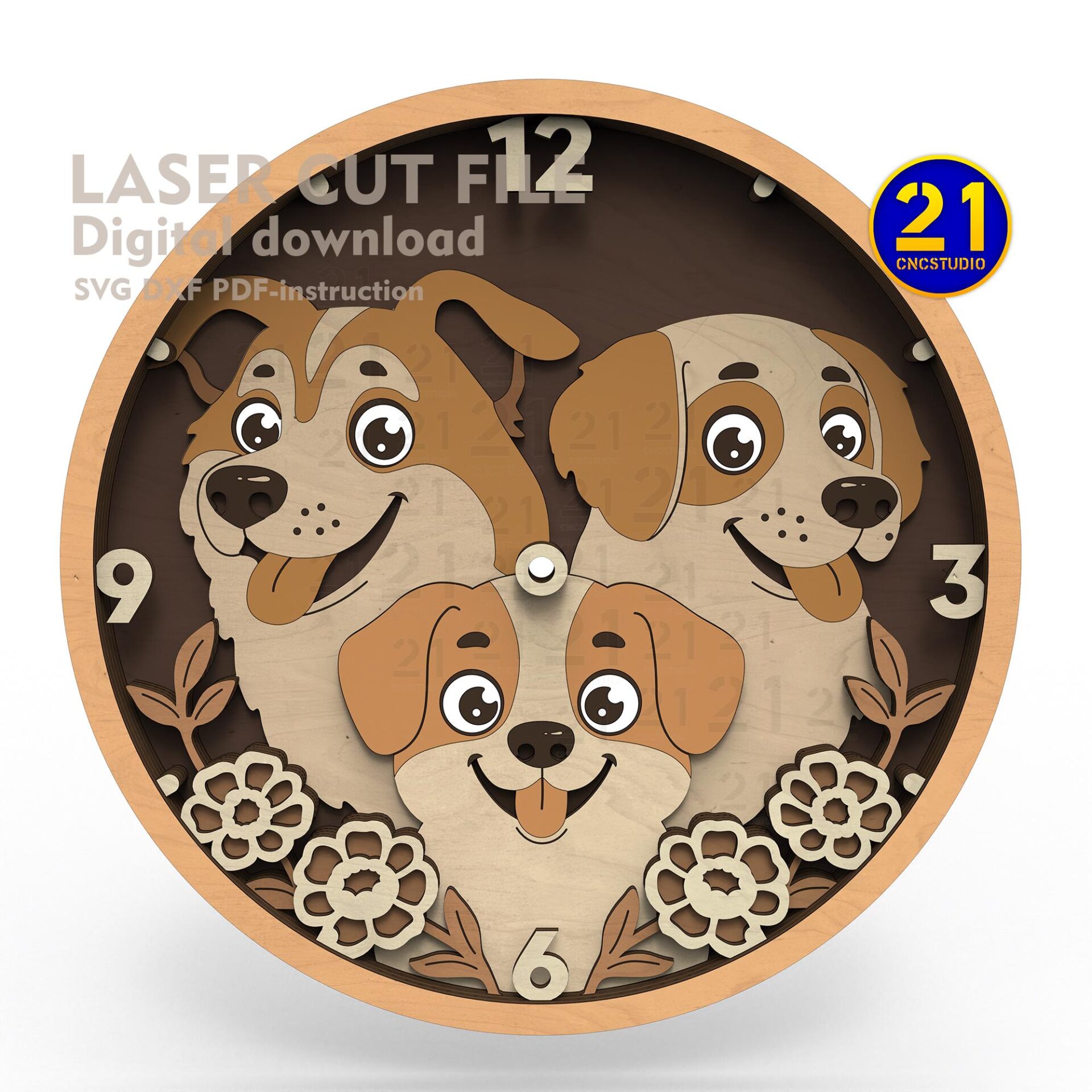

Three puppy faces above the flowers.

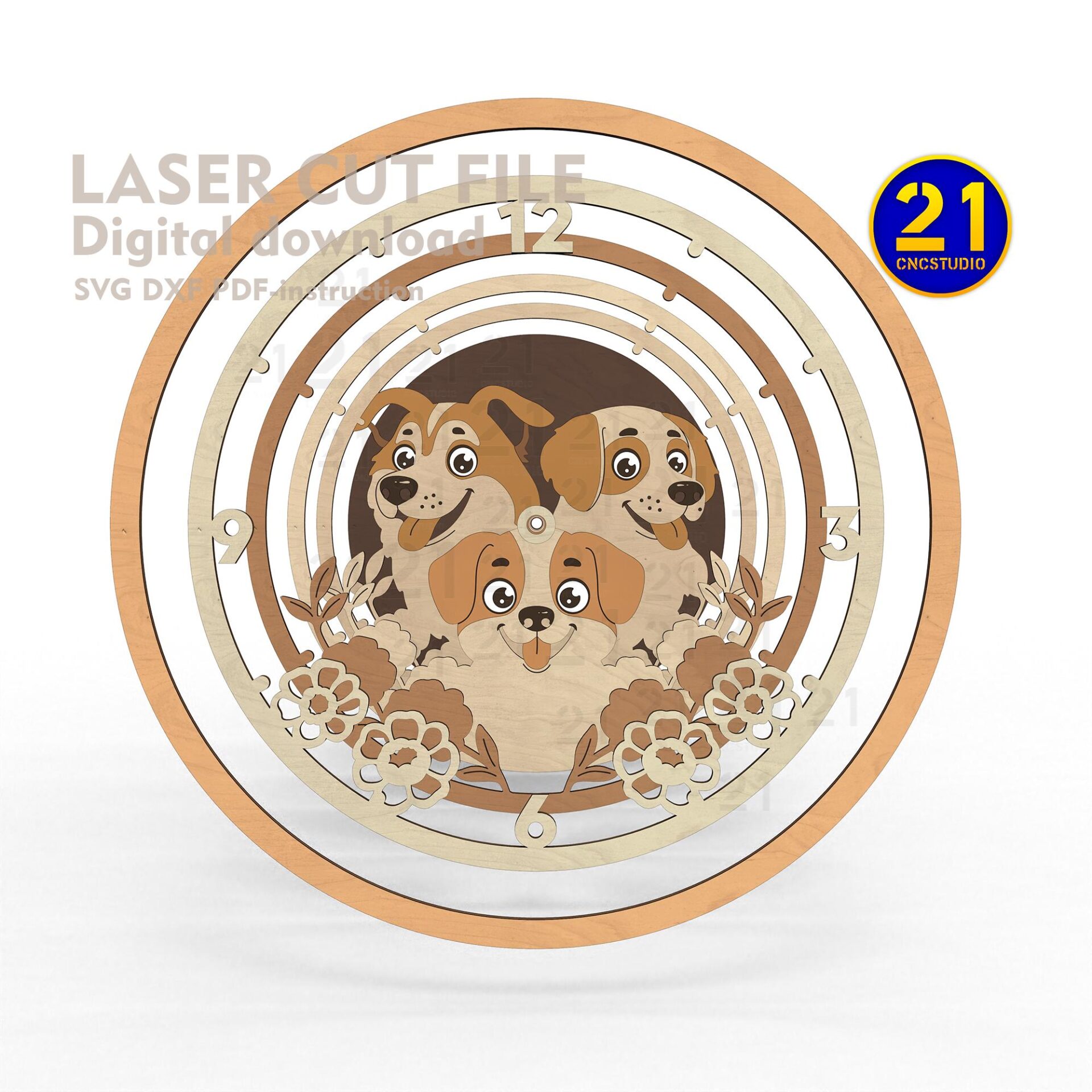

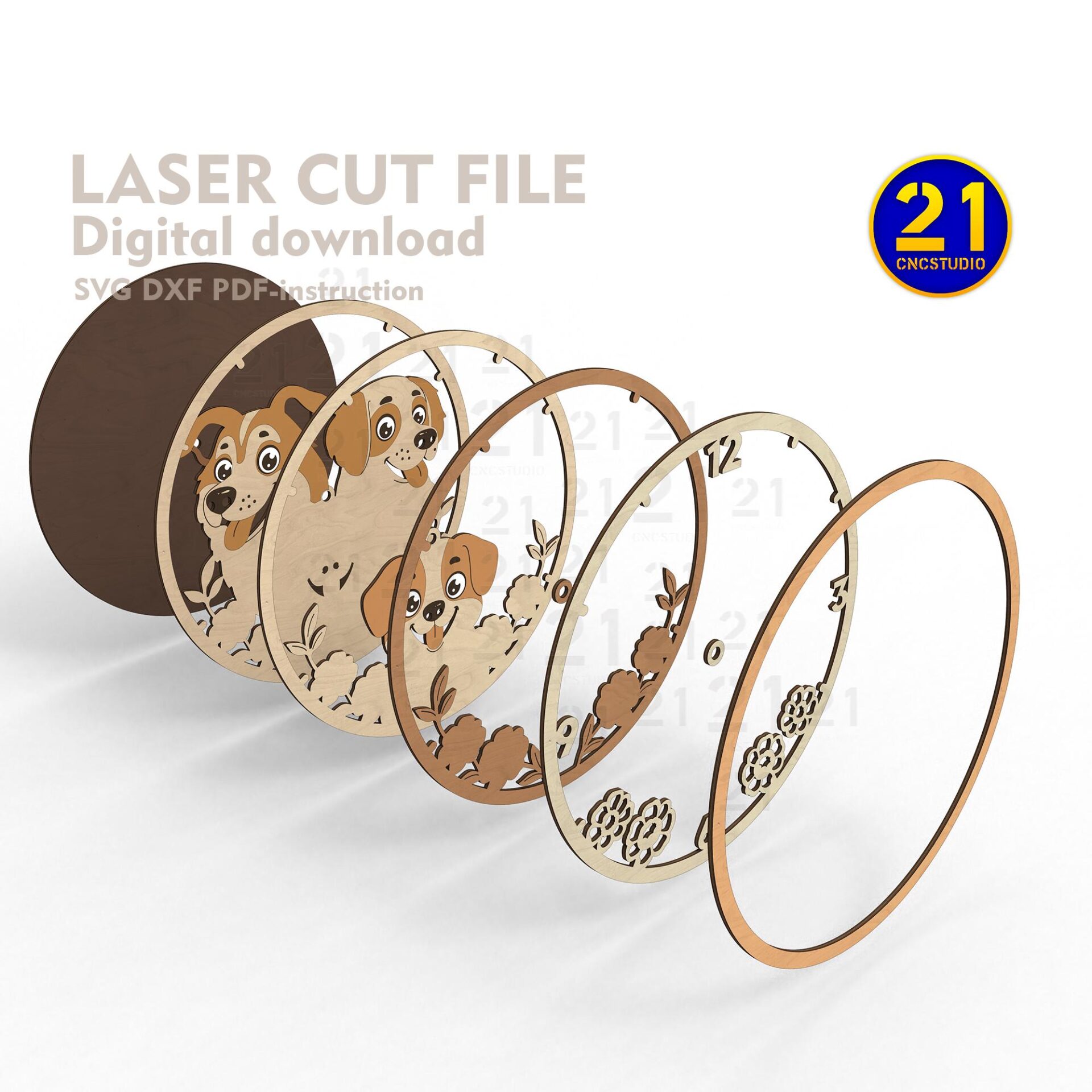

Two dogs sit across the upper face and a smaller puppy looks out from below. Flowers follow the bottom edge, with 12, 3, 6 and 9 around the circular rim. Original renders show the side and separated layers.
The design and largest layer measure 290 × 290 mm. Files are prepared for 3 mm and 1/8-inch plywood or MDF. The design specifies a 16 mm clock mechanism depth and does not recommend thicker material.
Layered dog artwork
The puppy faces and flowers form the clock face.
Mechanism recommendations
Use the PDF assembly and mechanism guidance when selecting hardware.
Hardware supplied separately
The digital package does not include the movement or hands.
Views & details
A closer look.

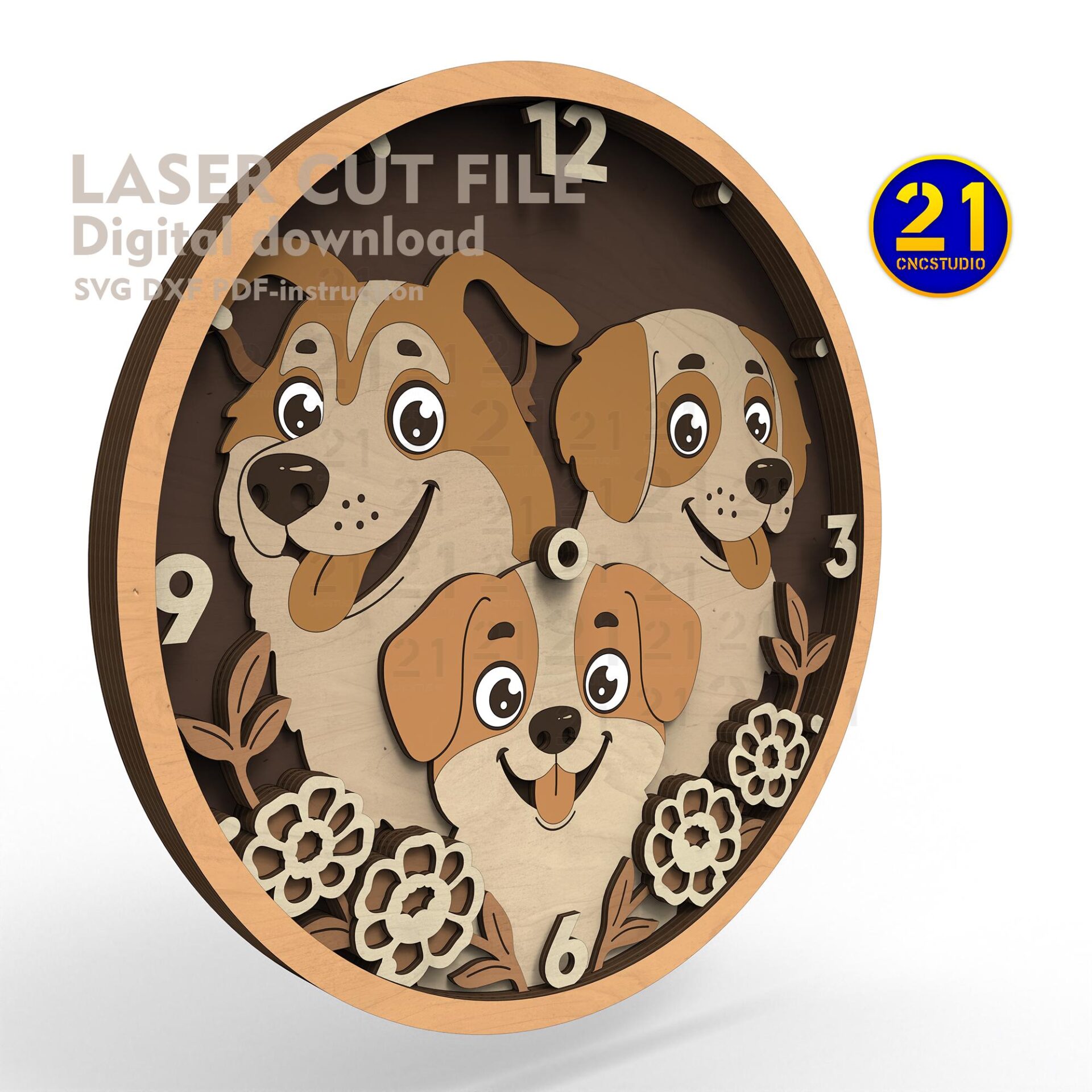

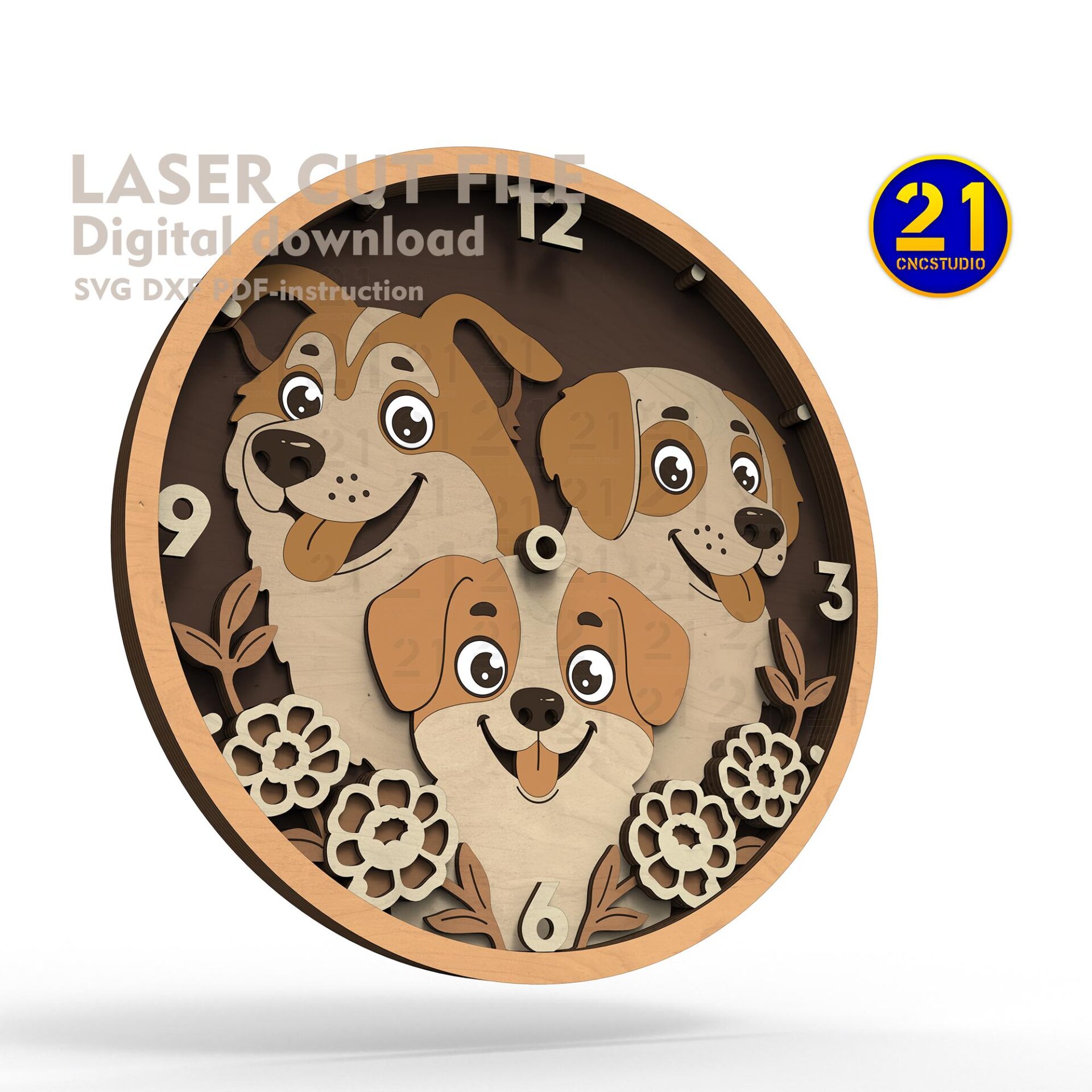

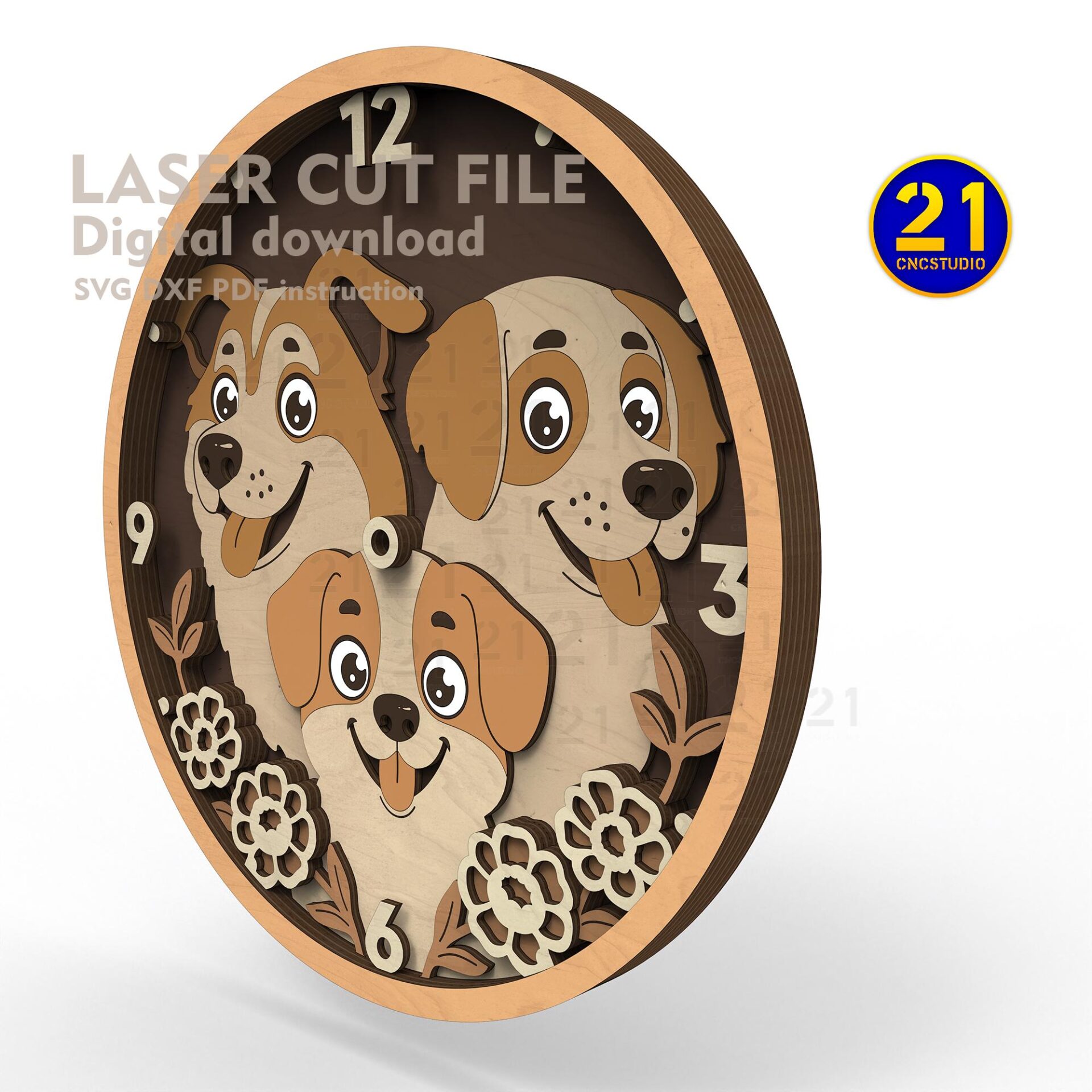

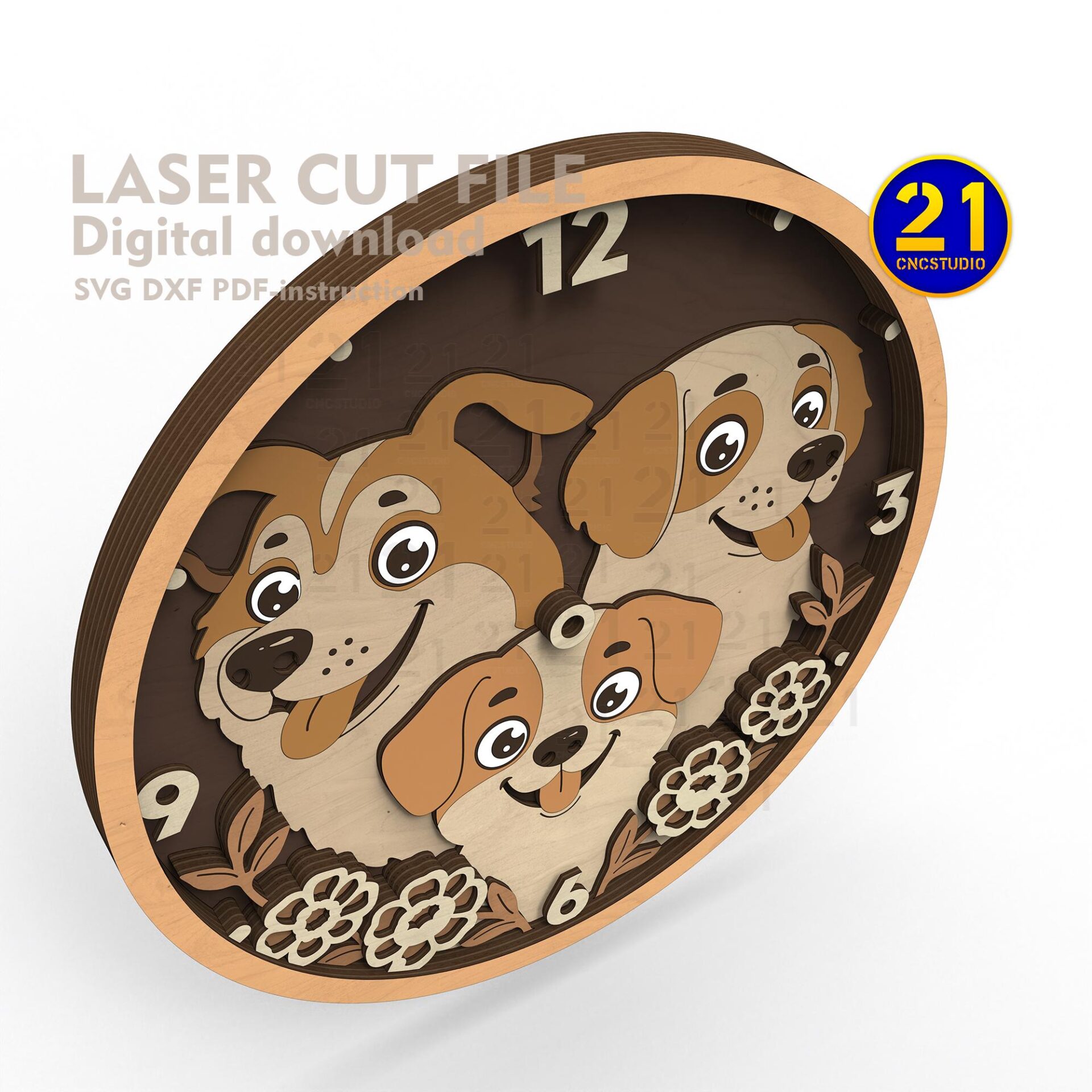

Original design renders from different angles. Select an image for a larger view.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Check the mechanism recommendations, centre hole and hand clearance before cutting. Use the specified material versions; the design does not recommend thicker material. Resizing requires a separate check of the hole and mechanism fit.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Layered clock with three dogs and floral detail
- Vector formats
- SVG, DXF, AI, CDR
- Design size / largest layer
- 290 × 290 mm
- Material versions
- 3 mm / 1/8 inch plywood or MDF
- Mechanism depth specified
- 16 mm
- Instructions
- PDF assembly and mechanism recommendations
- Hardware
- Clock movement and hands not supplied
What clock mechanism does the design specify?
The design specifies a 16 mm mechanism depth and includes PDF mechanism recommendations. Read that guidance and check the centre hole and hand clearance before sourcing your movement and hands.
What do I receive?
SVG, DXF, AI and CDR design files with PDF assembly instructions and mechanism recommendations, for 3 mm and 1/8-inch plywood or MDF. No clock movement, hands, physical clock or material is supplied.
Can I change the scale?
Keep every layer at one scale, but check the centre hole and clock movement fit separately. The design specifies a 16 mm mechanism depth and does not recommend thicker material. Review the PDF mechanism recommendations before changing size or thickness.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build the three-dog clock.
View the Dog Clock file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
