Pitbull / AmStaff Portrait / Laser-cut design
AmStaff. Six layers.
Laser-cut files for a six-layer American Staffordshire Terrier portrait. SVG, DXF and AI designs build the folded ears, broad muzzle and open smile; a PDF design file is also included.
Digital design · SVG + DXF + AI
No physical model or materials are shipped.
01 /The design

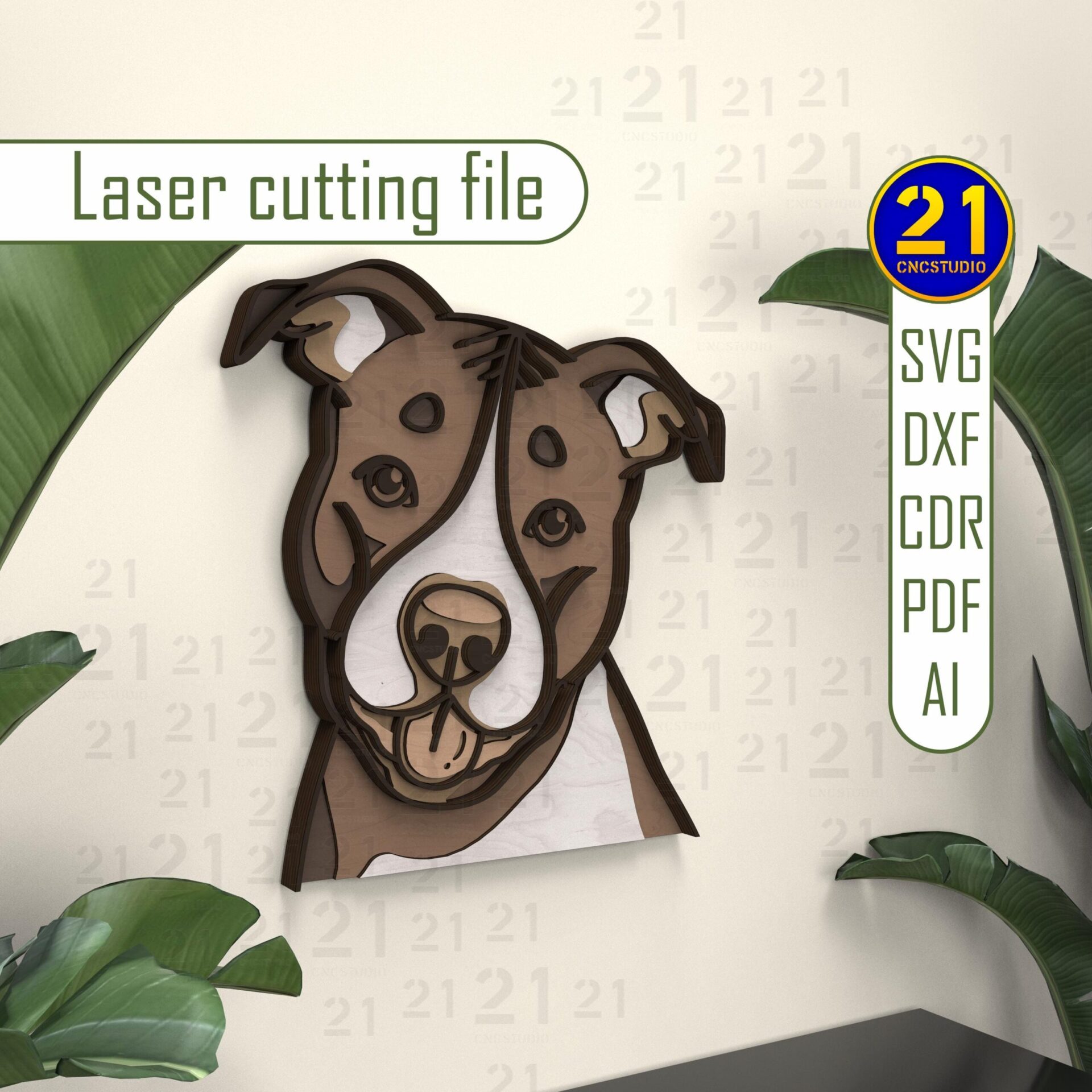

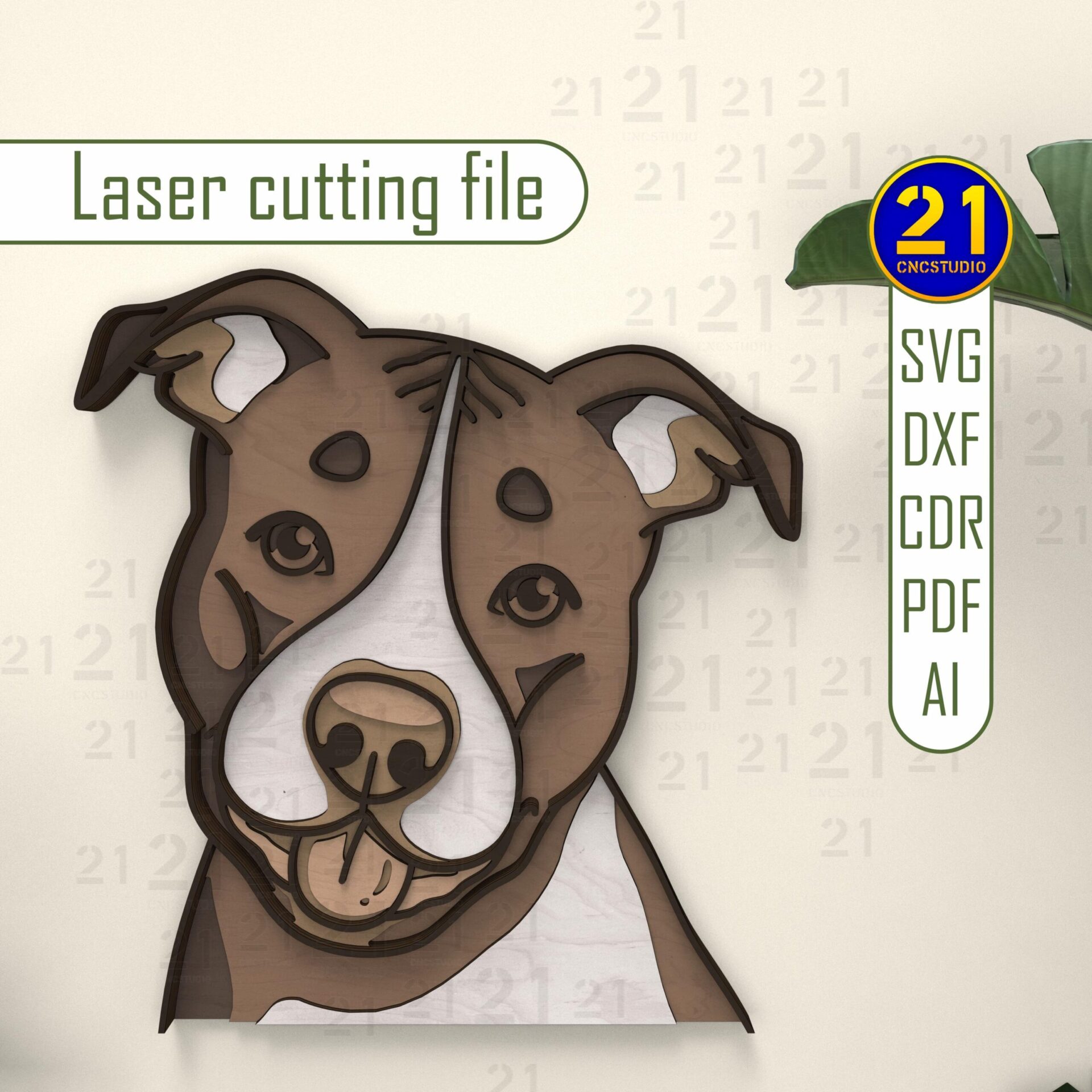

A dog portrait with depth and expression.

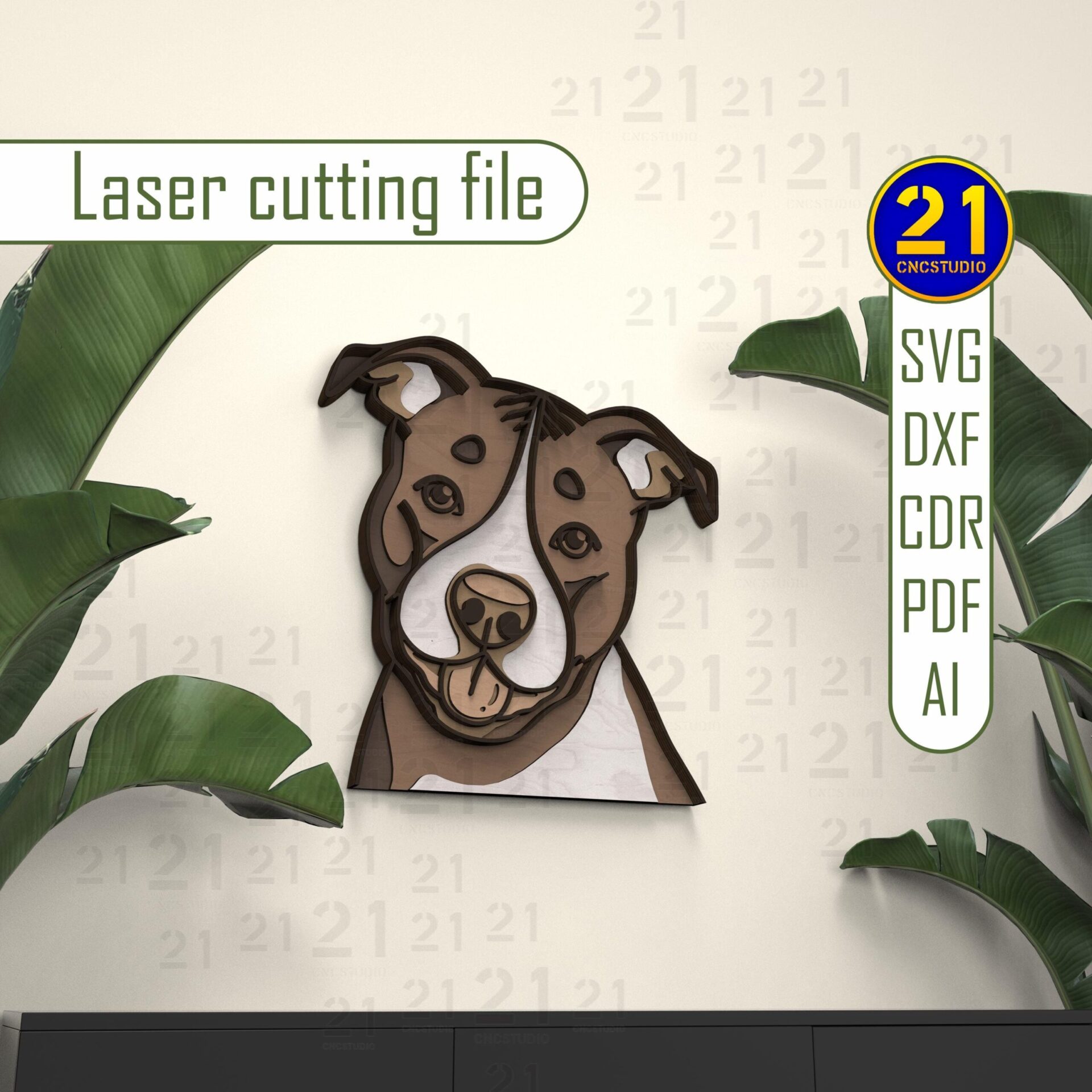

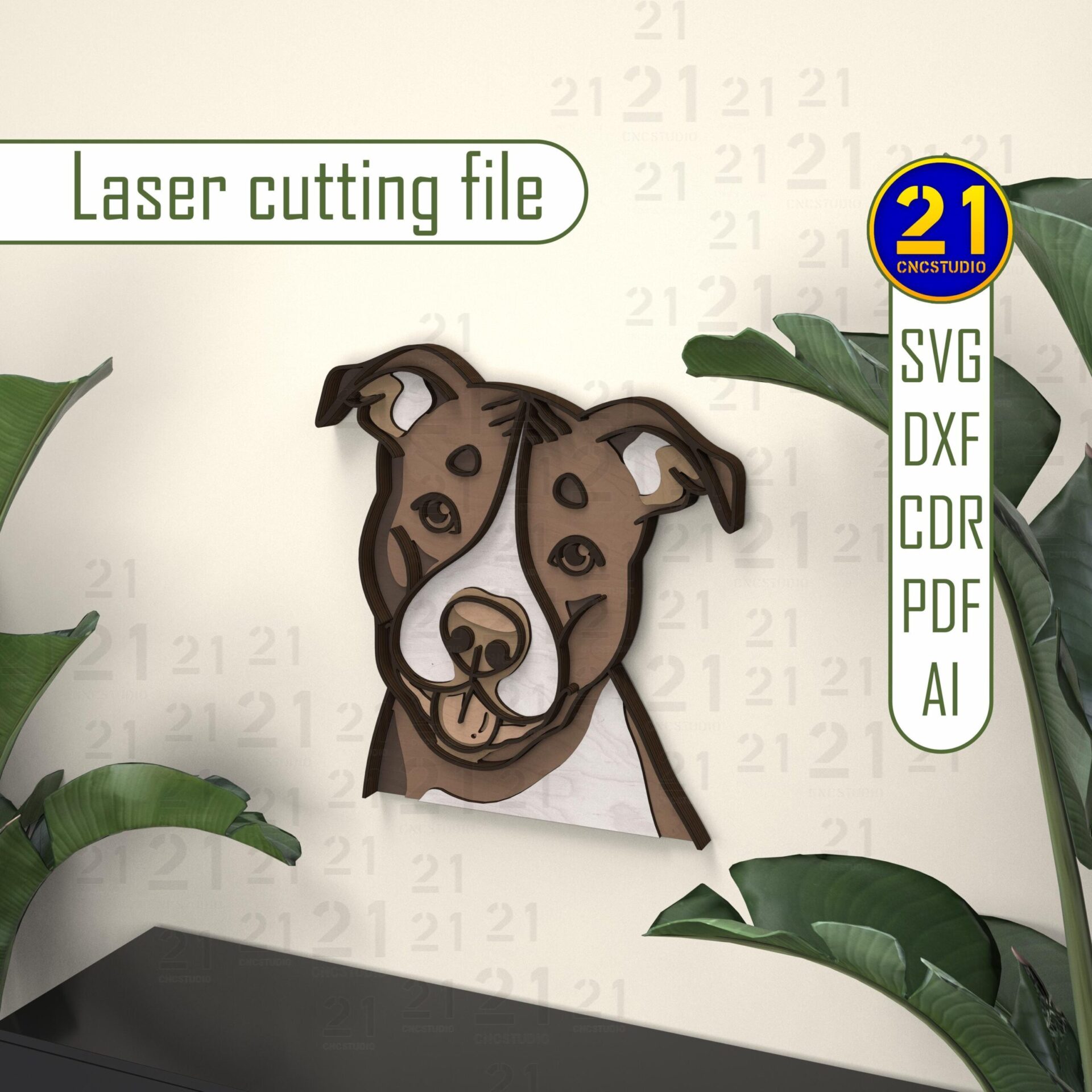

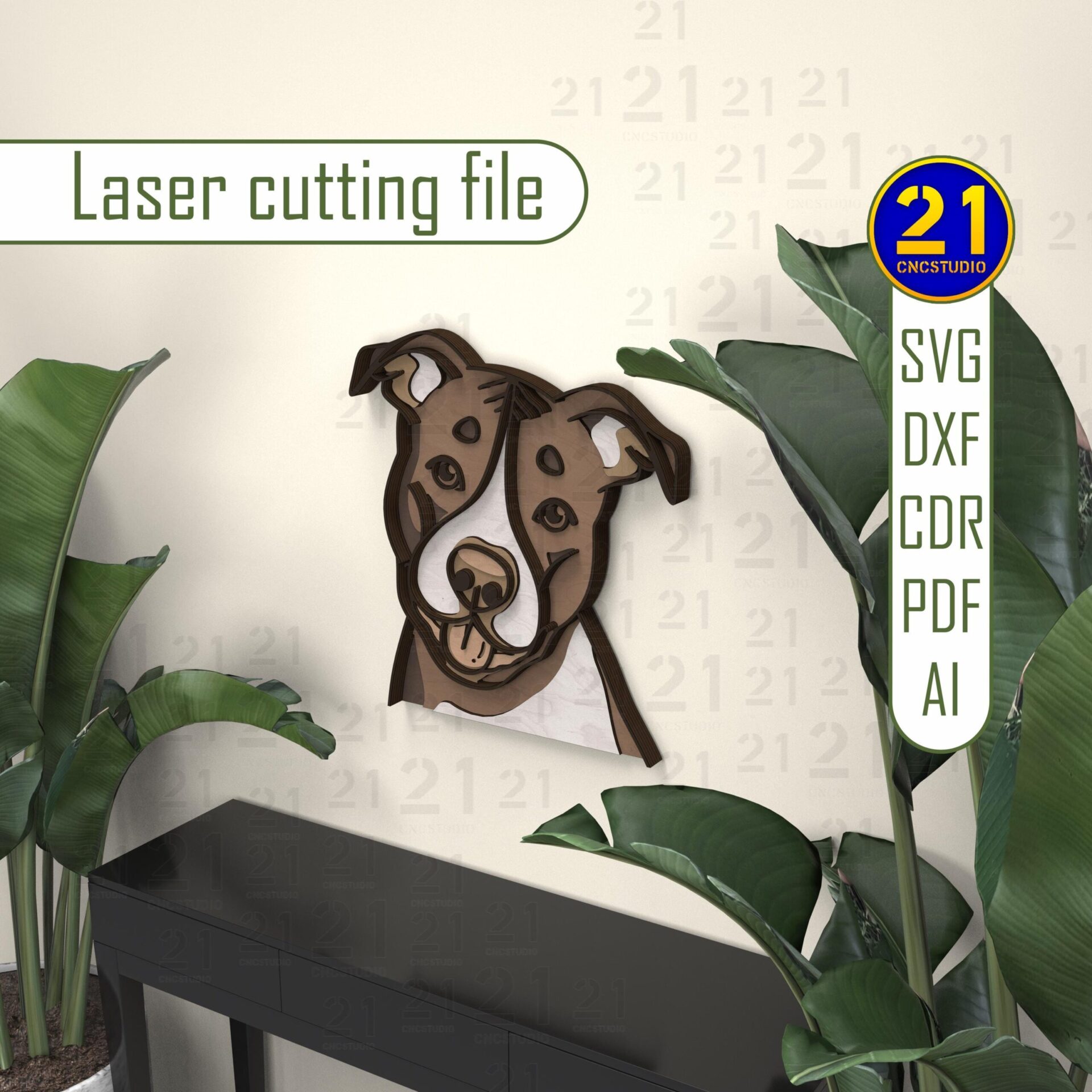

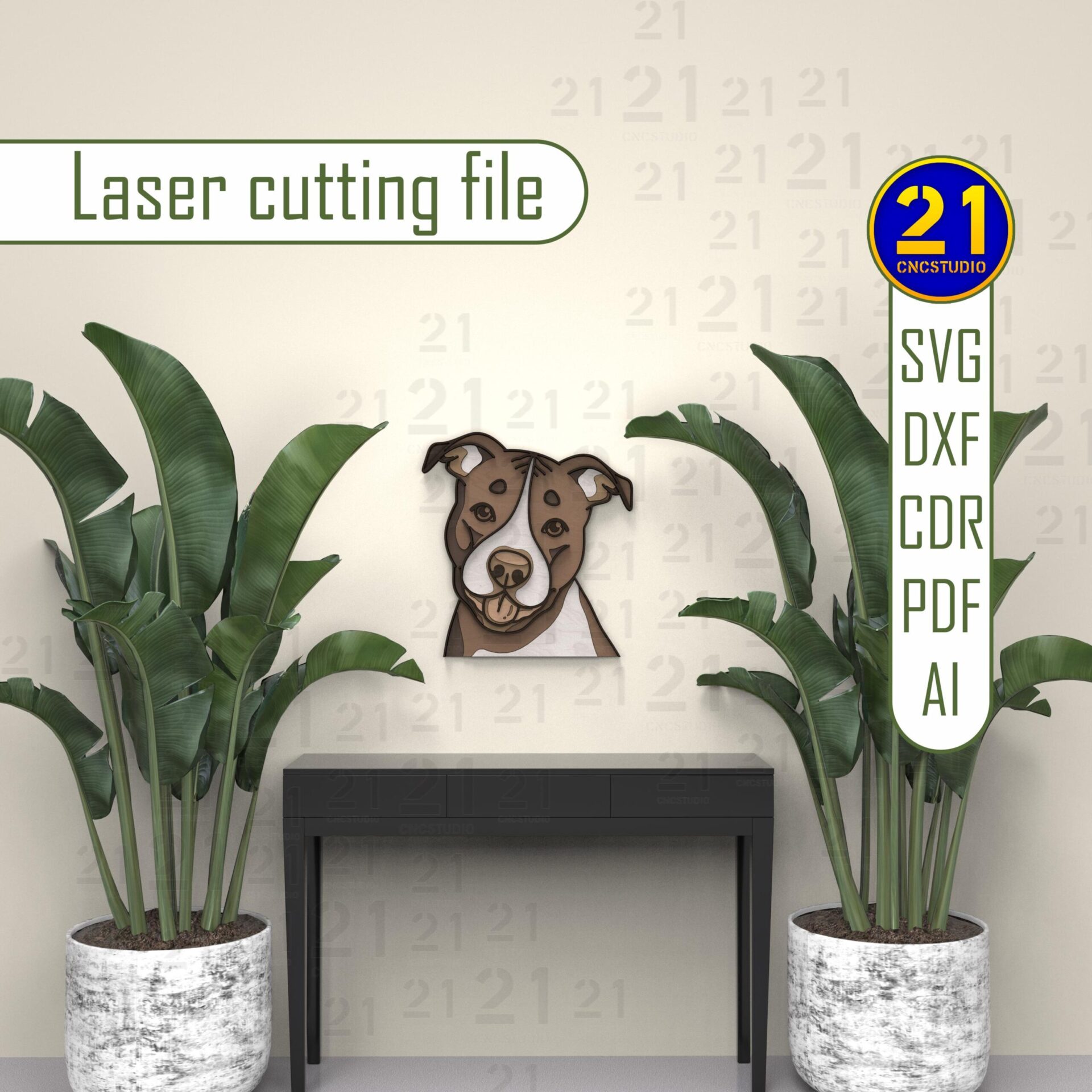

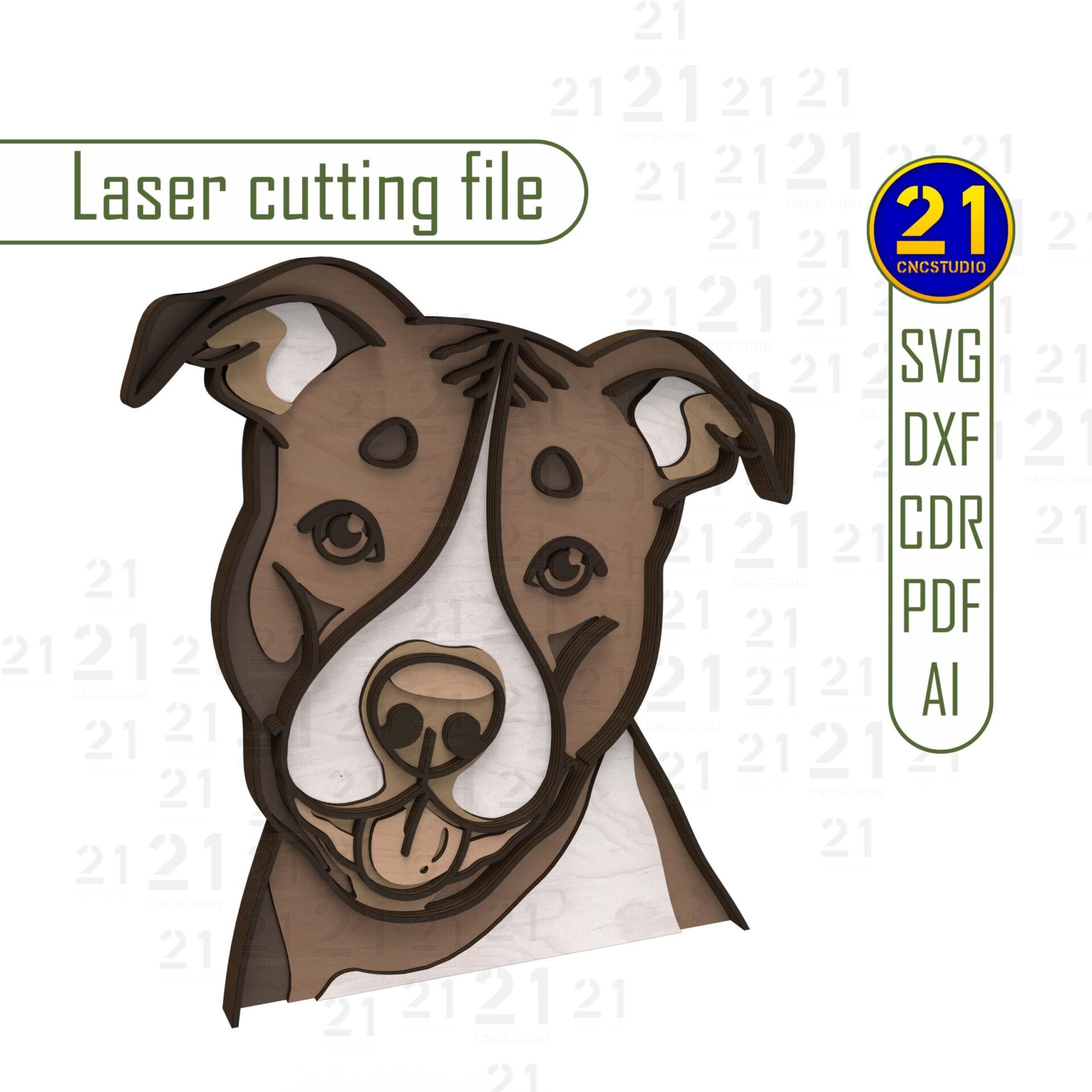

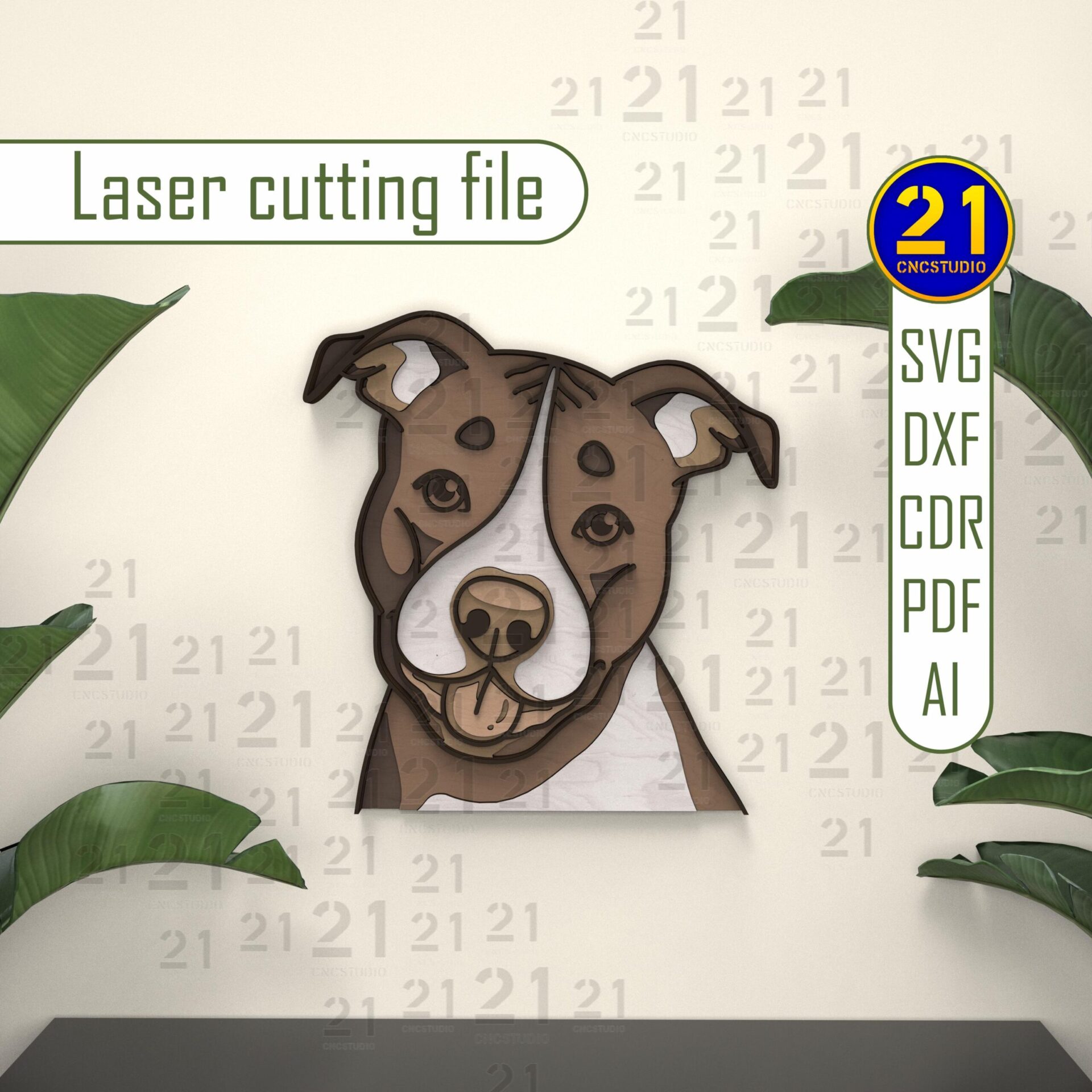

The AmStaff portrait uses six layers to separate the ears, eyes, muzzle and cheeks. Contrasting finishes help the facial shapes stand out from one another.
The recommended size is 290 × 272 mm. The listing specifies 3 mm and 1/8-inch versions for plywood, MDF or acrylic, with SVG, DXF and AI files plus a PDF design file. The PDF is not an assembly guide.

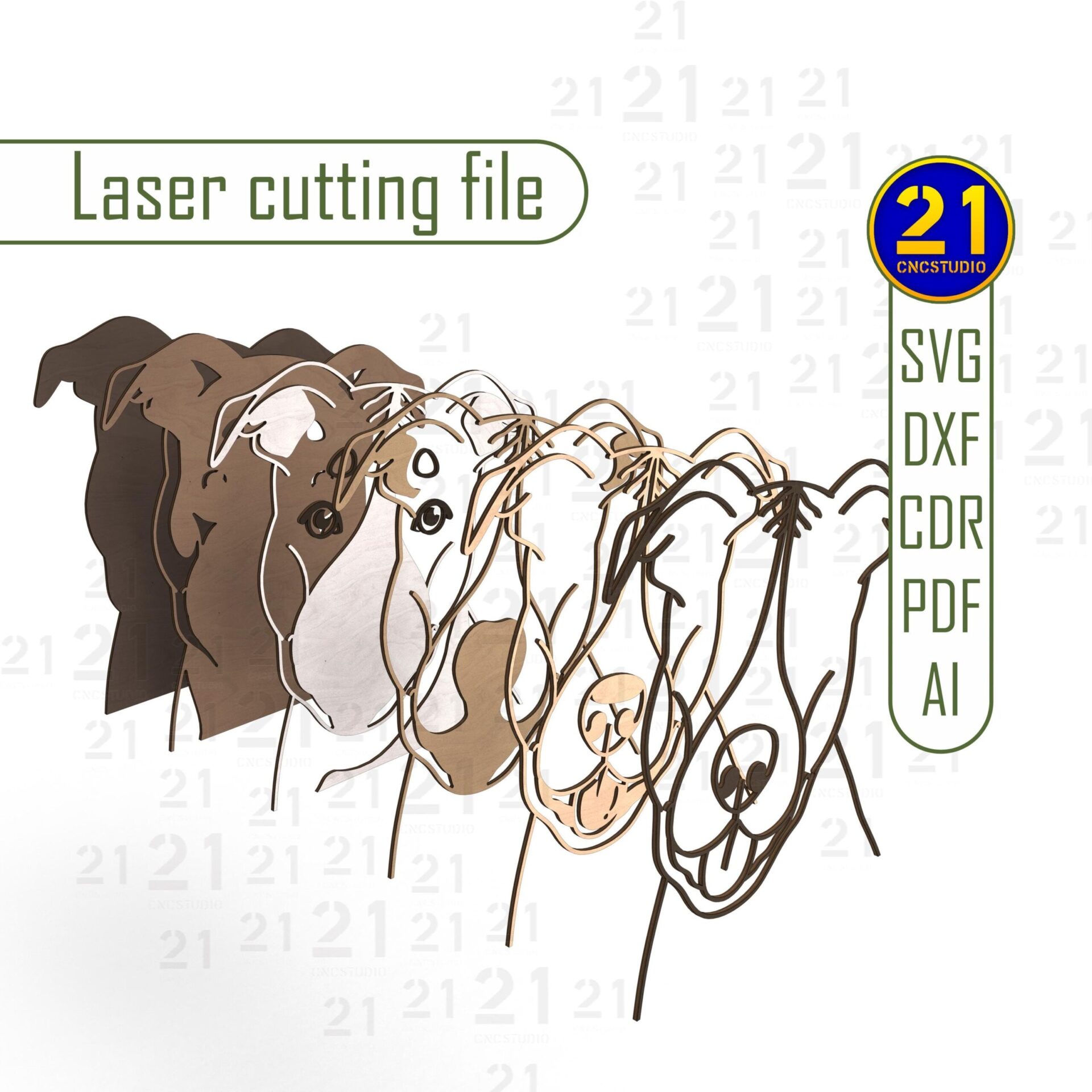

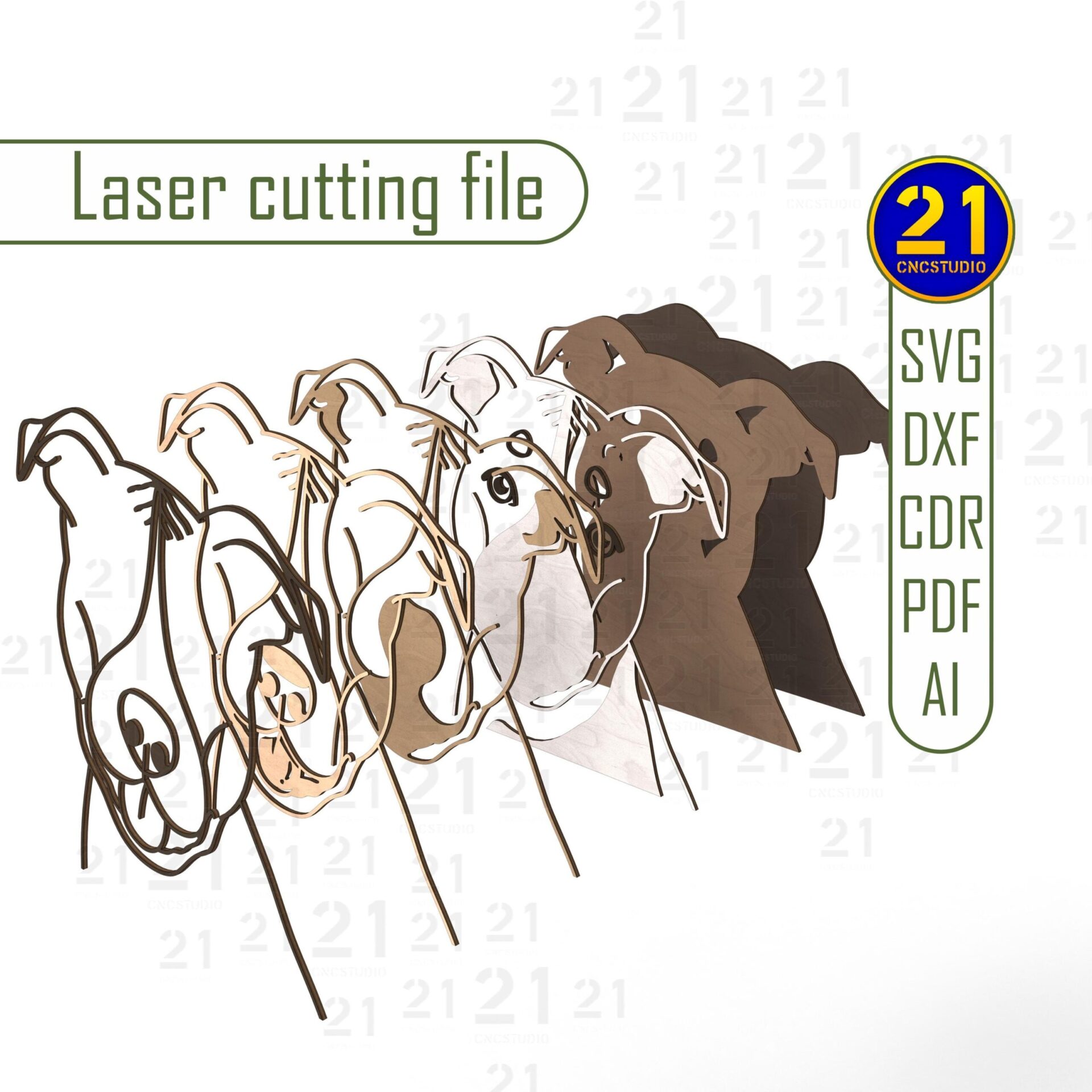

Six-layer portrait
Build the relief by aligning and stacking the cut shapes.
Distinct facial features
The ears, muzzle and mouth give the portrait its expression.
Material choices
Choose a listed material that your laser can cut and test it before the full job.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Measure your material and inspect the smallest facial details at the intended size. Keep all six layers aligned, check their order and dry-fit the stack before gluing.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Six-layer American Staffordshire Terrier portrait
- Vector formats
- SVG, DXF, AI
- Additional design file
- Recommended size
- 290 × 272 mm
- Material versions
- 3 mm / 1/8 inch plywood, MDF or acrylic
- Assembly guide
- Not included
Is the PDF an assembly guide?
No. The listing identifies it as a design file and states that no assembly instruction guide is included. Inspect the layer order and alignment before fixing the pieces together.
What do I receive?
SVG, DXF and AI vector files, plus a PDF design file. No assembly instruction guide, physical portrait or material is included.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished pieces. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Make your AmStaff portrait.
View the Pitbull / AmStaff Portrait file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
