Crowned Lion / Laser-cut design
Crowned Lion. Seven layers.
Laser-cut a crowned lion portrait in seven layers. SVG, DXF, AI, CDR and EPS files separate the face, crown and mane into shapes you can finish and stack.
Digital design · SVG + DXF + AI + CDR + EPS
No physical model or materials are shipped.
01 /The design
Build depth through the mane.

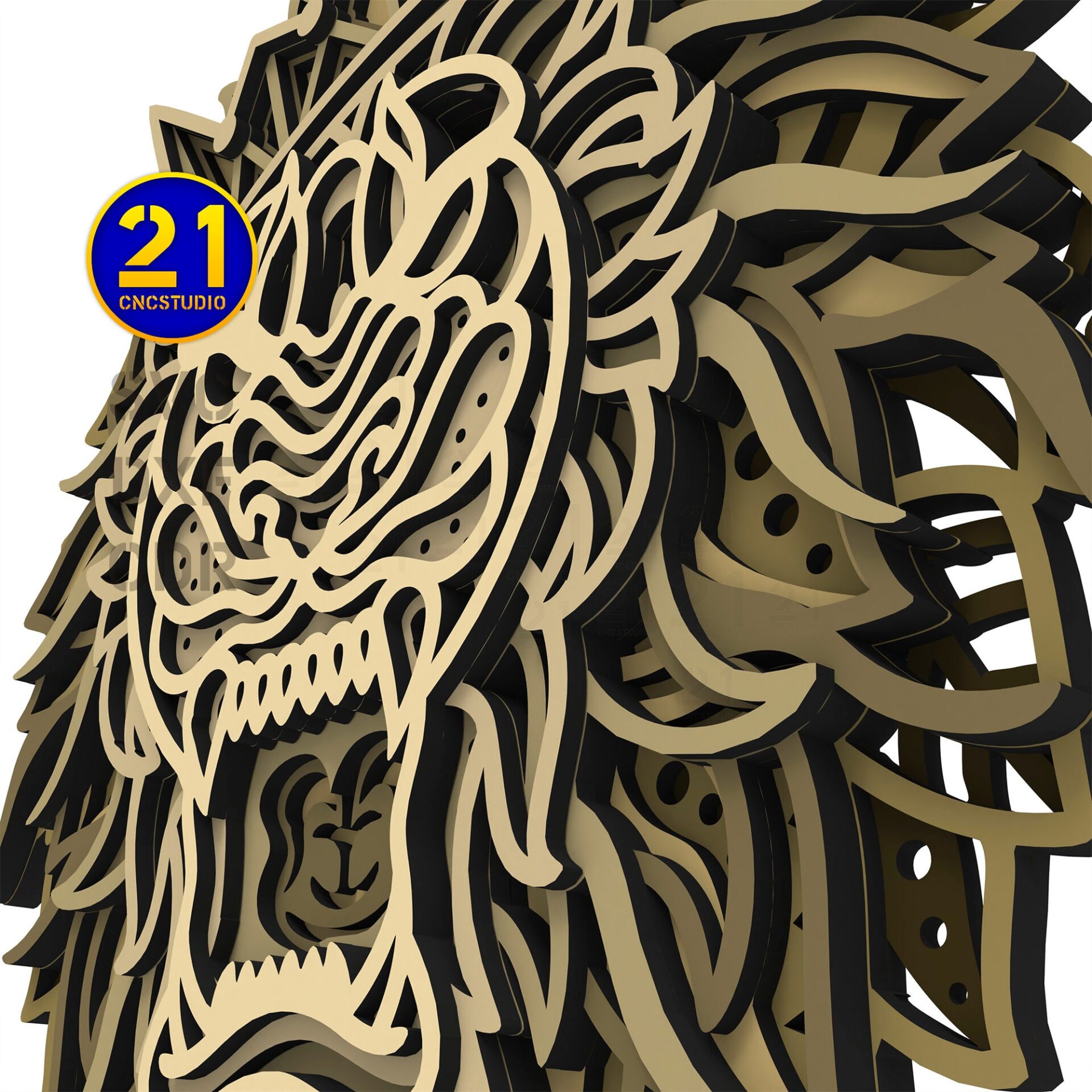

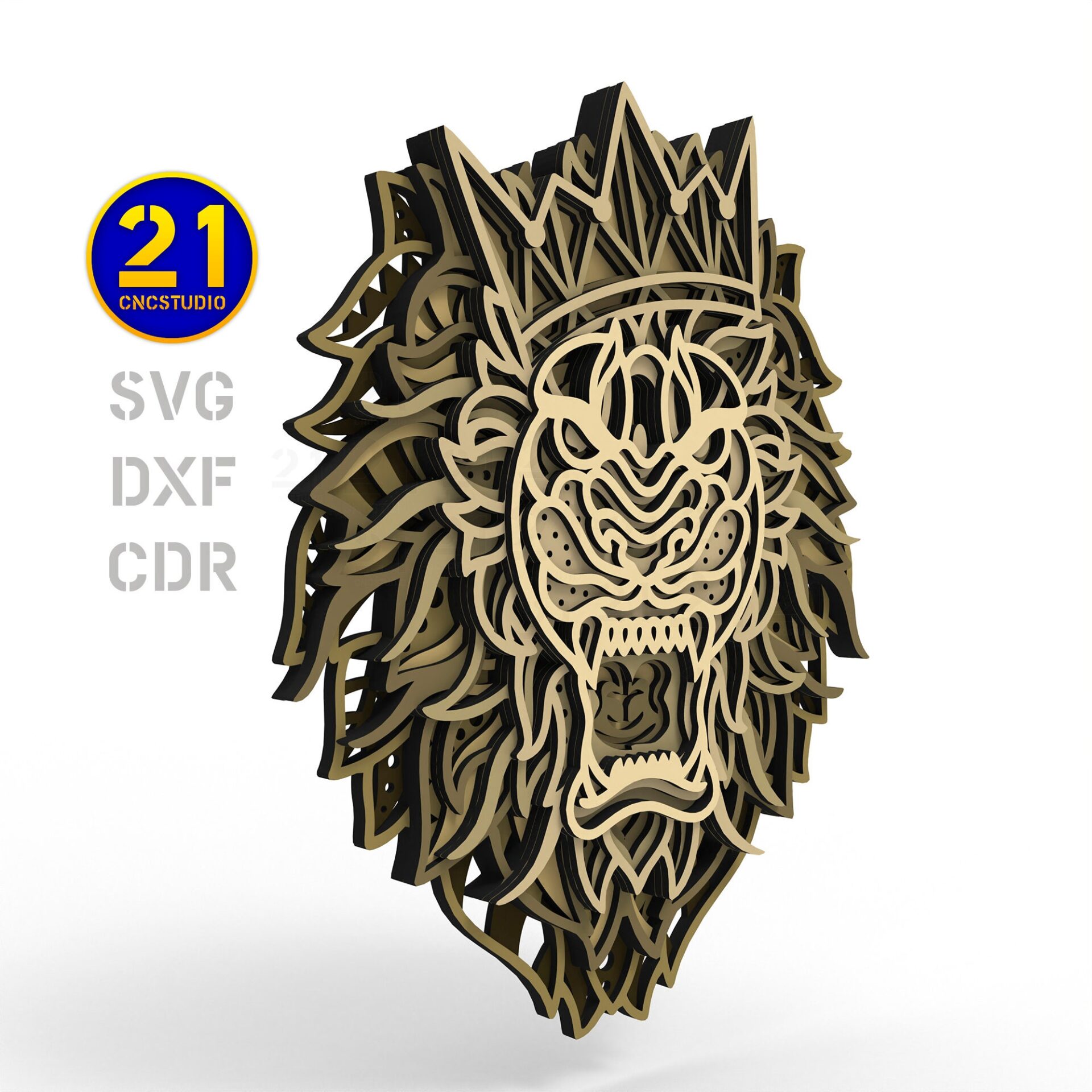

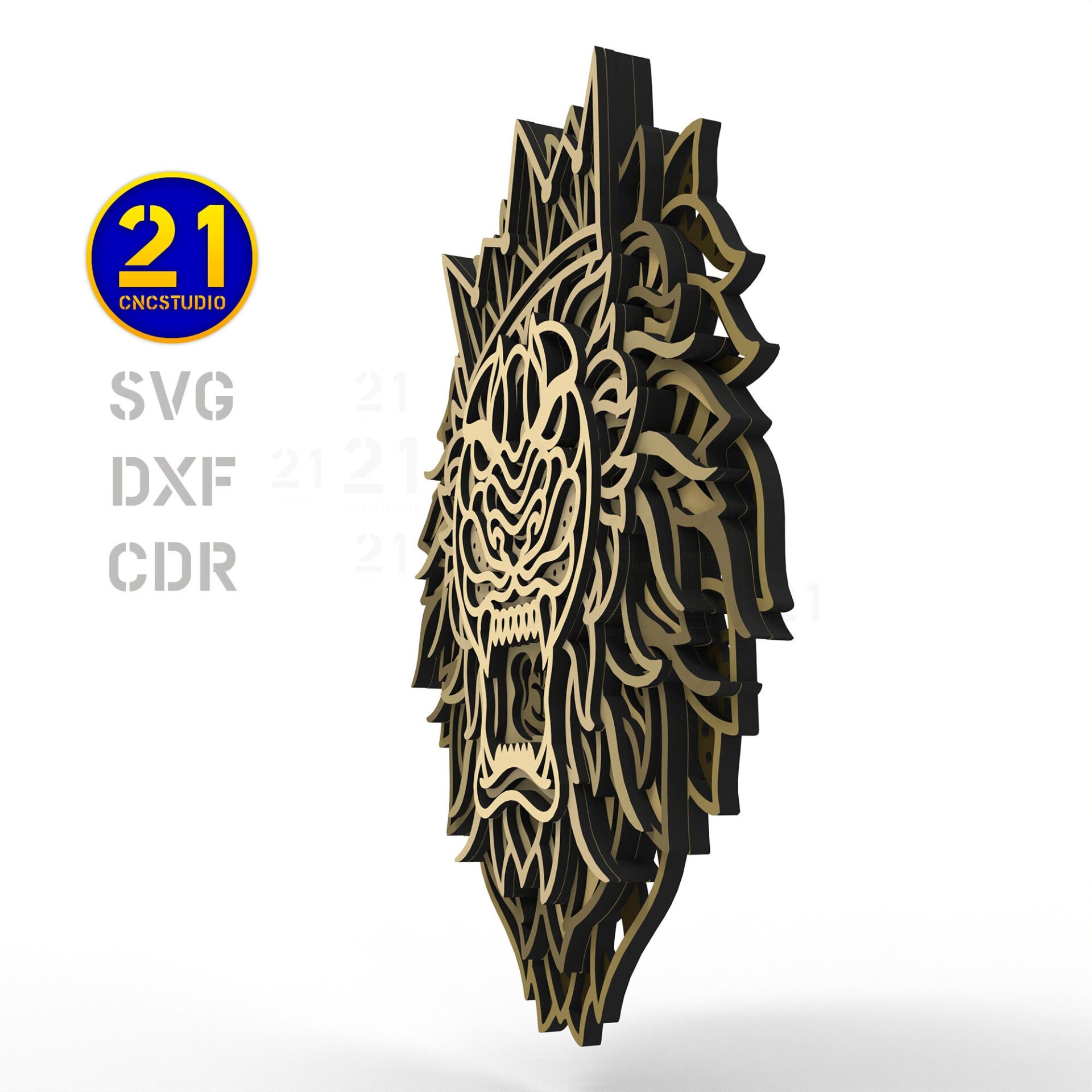

The lion’s face is framed by a detailed mane and a crown. Seven stacked layers create the recessed areas and raised lines that define the portrait.
The listed design measures 290 × 234 mm, with the widest part approximately 290 mm. SVG, DXF, AI, CDR and EPS formats are included. The package does not include an assembly guide.

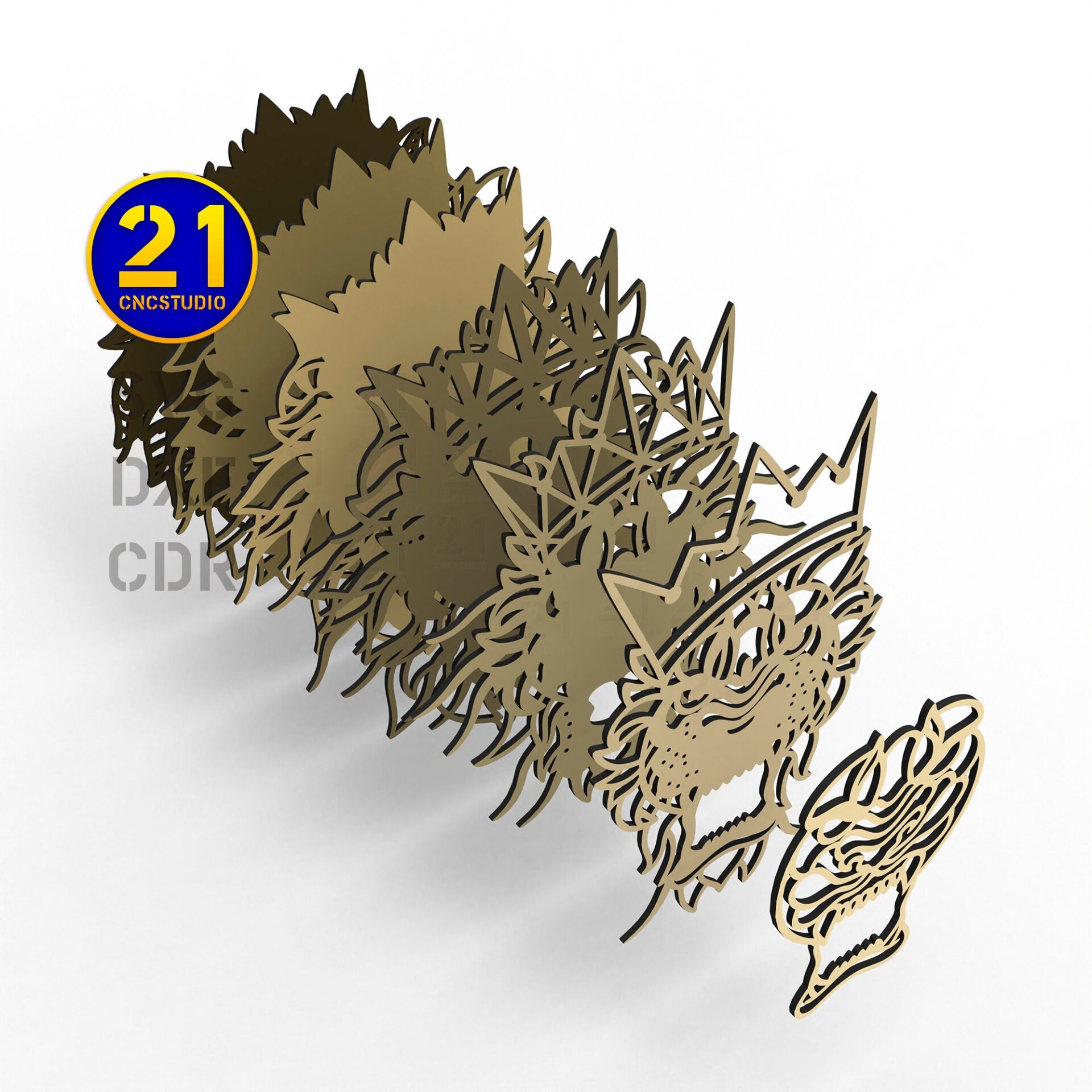

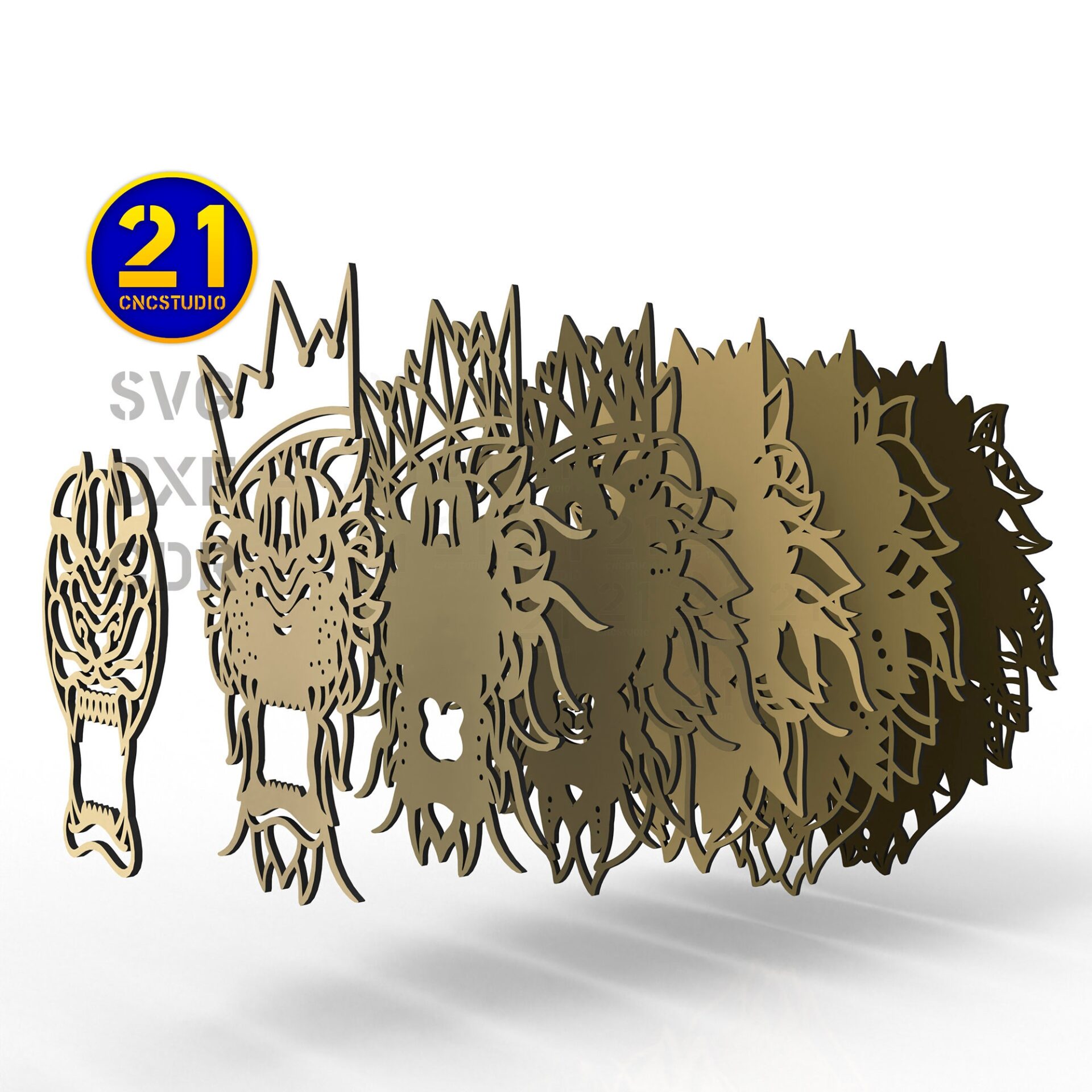

Seven layers
Stack the cut shapes to build the portrait’s relief.
Crown and mane
The outline and fine internal patterns form the design’s main features.
Contrasting surfaces
Choose finishes that separate the raised detail from the recessed areas.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the narrow sections in the mane at the size you intend to cut. Keep every layer at one scale, check their order and dry-stack the portrait before gluing.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Seven-layer crowned lion portrait
- Vector formats
- SVG, DXF, AI, CDR, EPS
- Listed design size
- 290 × 234 mm
- Widest part
- Approximately 290 mm
- Assembly guide
- Not included
How many layers does the portrait use?
The design uses seven layers. Keep them at a common scale and check the alignment of the face, mane and crown before fixing the stack together.
What do I receive?
SVG, DXF, AI, CDR and EPS digital vector files. No assembly guide, physical lion artwork or material is included.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished pieces. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Cut the crowned lion.
View the Crowned Lion file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
